Malco PL24 Pipelounge 24 inch Pipe Support 10-pack

Product Description

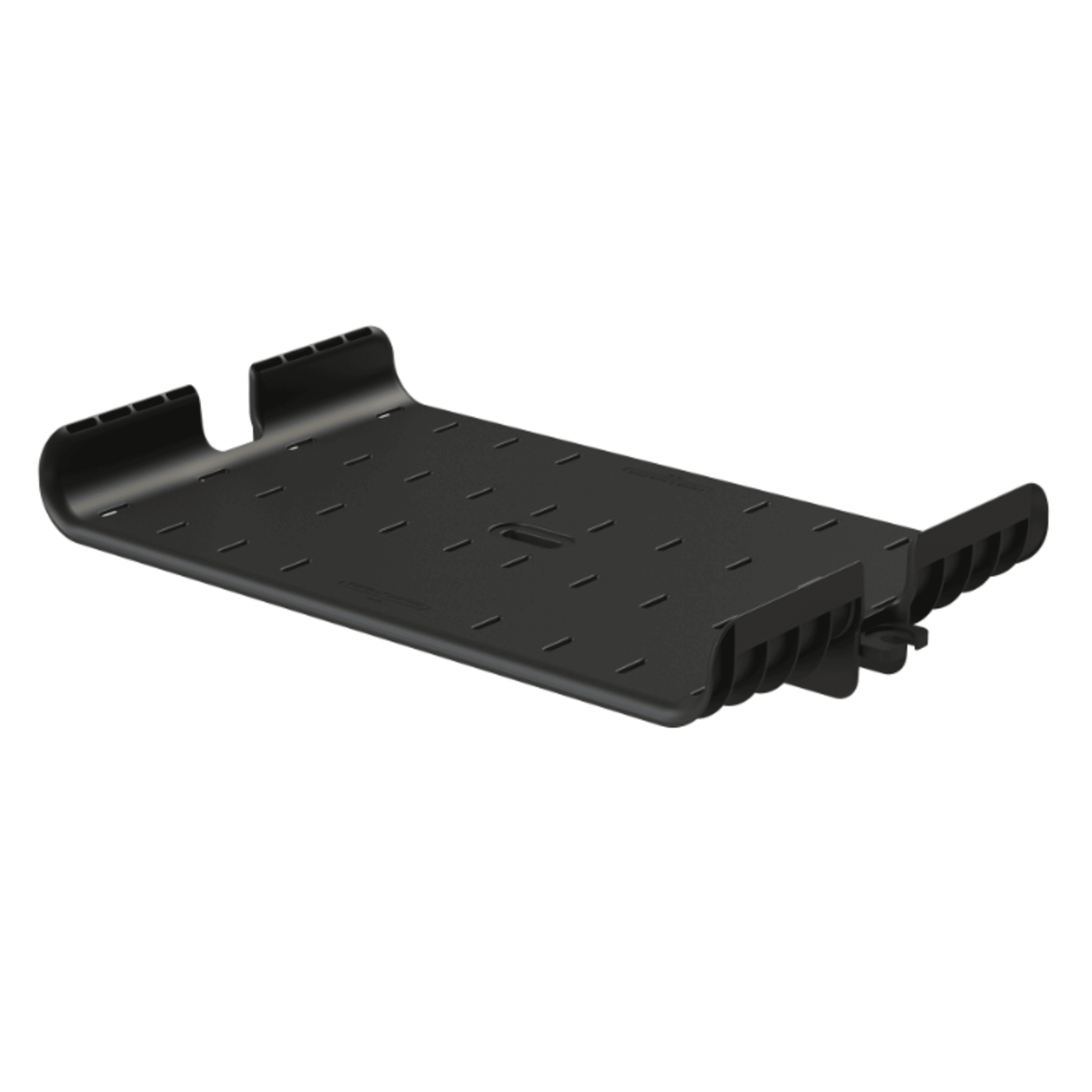

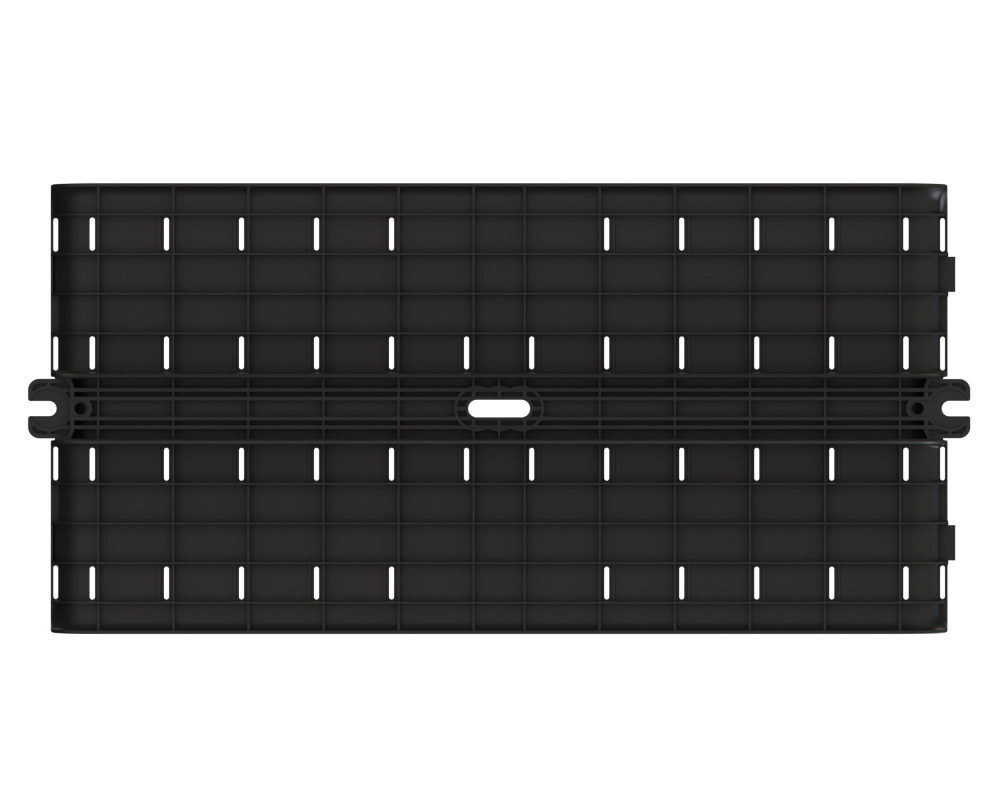

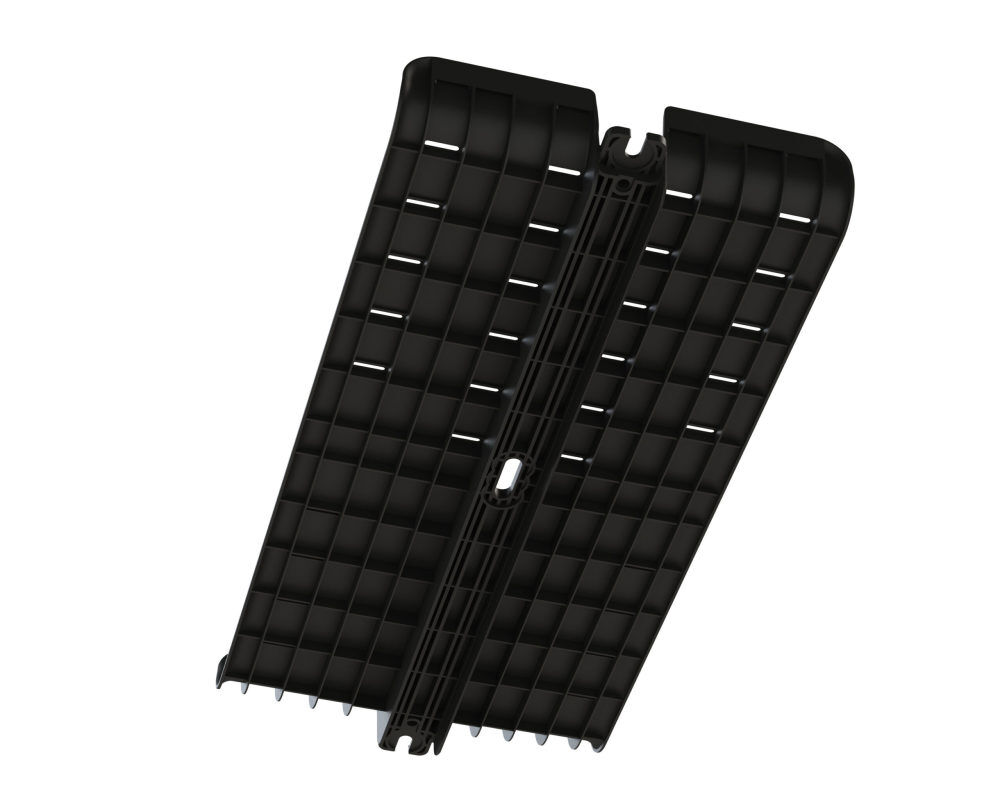

The Malco PL24 PipeLounge 24 Inch Pipe Support is a modular system designed to hold multiple insulated HVAC line sets, allowing for expansion and contraction. It cushions pipes to protect insulation and maintain proper alignment. This system reduces installation complexity by eliminating the need for multiple strut components. Its modular design allows supports to be stacked or joined for different pipe sizes and configurations, reducing material use and labor time. It supports up to 110 Lbs and uses standard 3/8 In. threaded rod.

• Modular and stackable design for flexible configurations
• Tough fire rated ABS construction
• Eliminates need for strut components, simplifying installation

Product Highlights

Efficient and adaptable modular pipe support for HVAC and mechanical applications.

Product Information

Standard Information

• Brand: MALCO
• Manufacturer Part Number: PL24
• Country of Origin: United States

Technical Specifications

• Weight: 2.13 lbs
• Package Quantity: 10 Pipe Supports
• Length: 24 inches
• Load Capacity: 110 lbs
• Mounting Type: Standard 3/8 inch threaded rod and hardware
• Material: PC/ABS (non-halogenated flame-resistant)
• UL94 Classification: Meets UL94 classification
• Recommended Installation Spacing: Maximum 5 feet (60 inches) along pipework, maximum 8 inches from changes in direction
