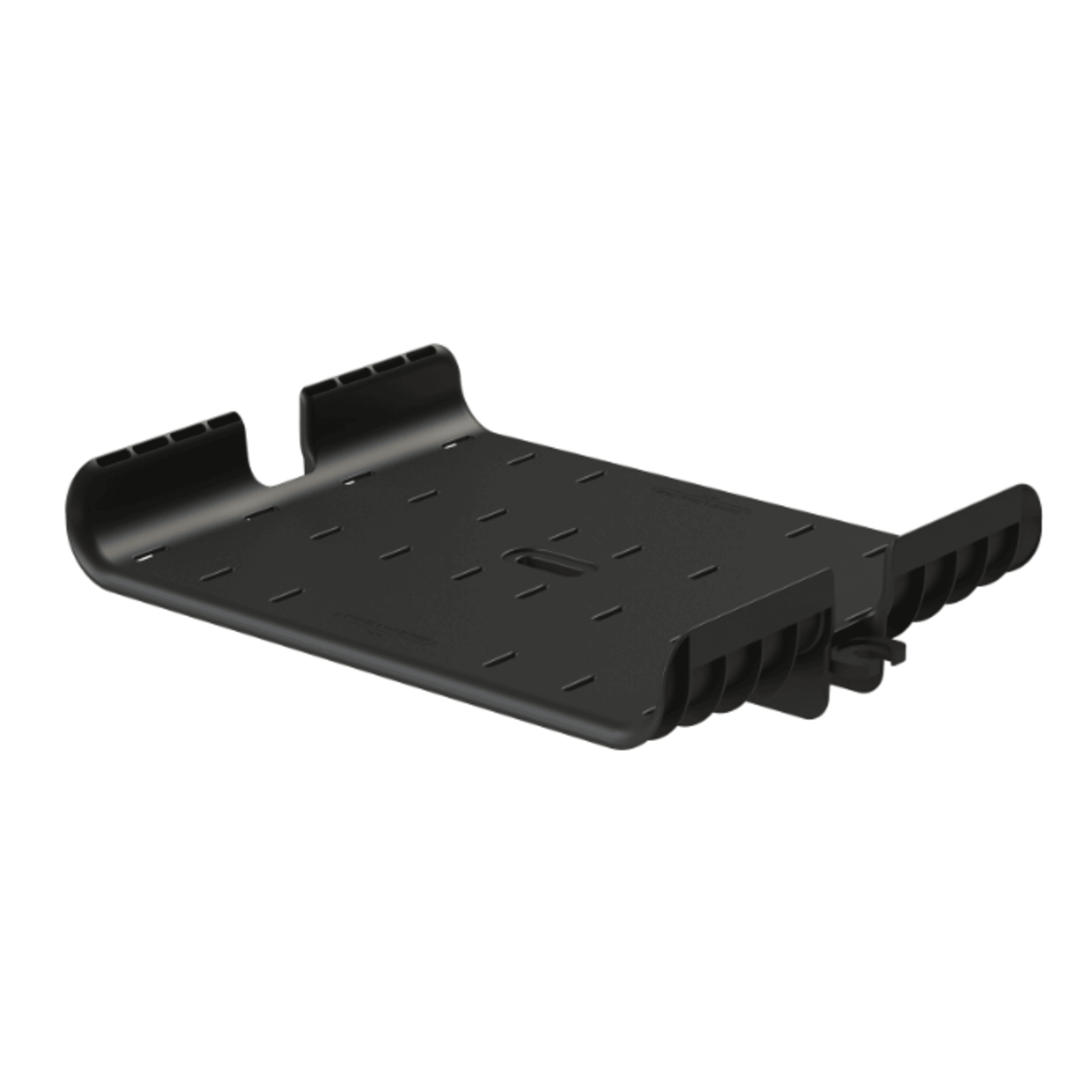

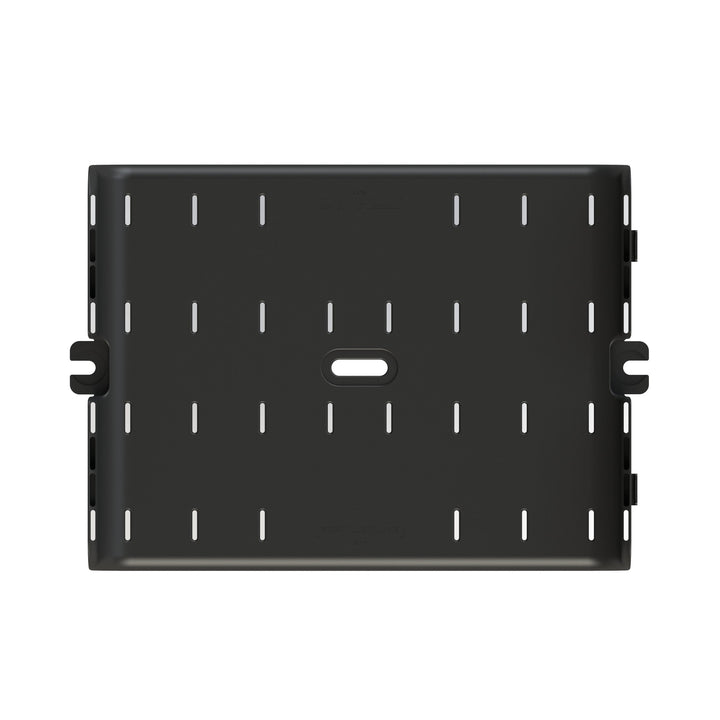

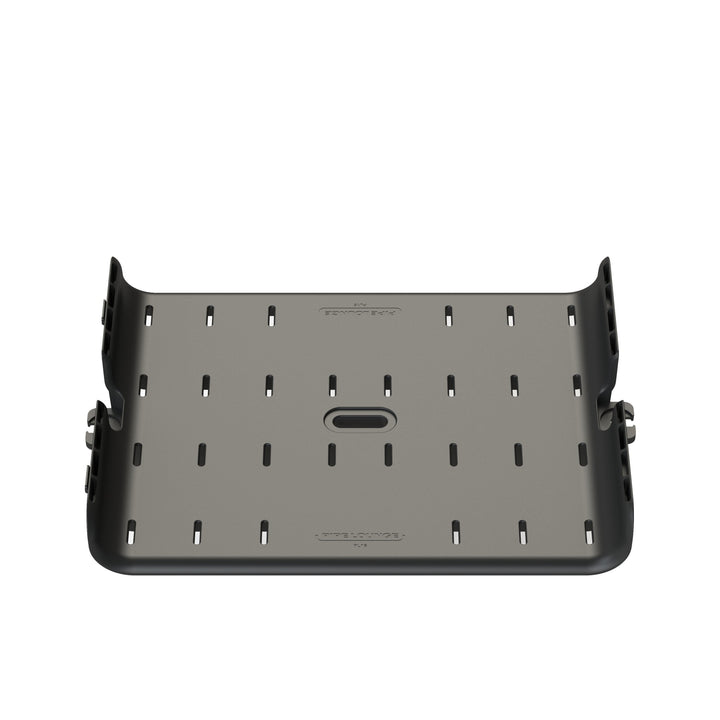

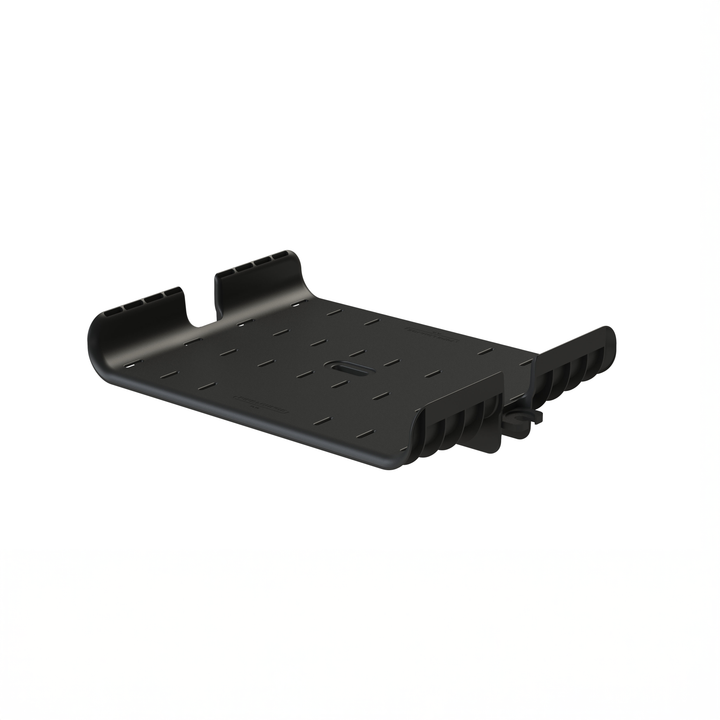

Malco PL16 PipeLounge Pipe Support for HVAC Line Sets 16 Inch 10 Pieces

Product Description

The MALCO PL16 PipeLounge 16 Inch Pipe Support is a modular system designed for HVAC and mechanical applications. It securely holds multiple insulated HVAC line sets, accommodating expansion and contraction while protecting insulation and maintaining alignment. This support system reduces installation complexity by eliminating the need for multiple strut components. Its modular design allows stacking or joining to fit various pipe sizes and configurations, optimizing material use and labor time. It supports up to 110 lbs without a strut and installs with standard 3/8 inch threaded rod.

• Modular and stackable design for flexible configurations.
• Supports up to 110 lbs without requiring additional strut.
• Protects pipe insulation and maintains proper alignment.

Product Highlights

Modular pipe support for HVAC line sets, reducing installation complexity and material use.

Product Information

Standard Information

• Brand: MALCO
• Manufacturer Part Number: PL16
• Country of Origin: United States

Technical Specifications

• Brand: Malco Products
• MPN: PL16
• Type: Pipe Support
• Nominal Size: 16 inches
• Dimensions (L x W x H): 17.13 x 12 x 3.38 In.
• Pack Quantity: 10
• Assembled Weight: 1.47 lbs
• Shipping Weight: 16.56 lbs
• Country of Origin: United States
• Product Condition: New
• Restrictions: CA Prop 65
• UPC: 686046560250
• Load Capacity (without strut): 110 lbs
• Required Threaded Rod Size: 3/8 inch
• Material: PC/ABS (non-halogenated flame-resistant)
• Plenum Rated: No (meets UL94 classification)
