Product Description

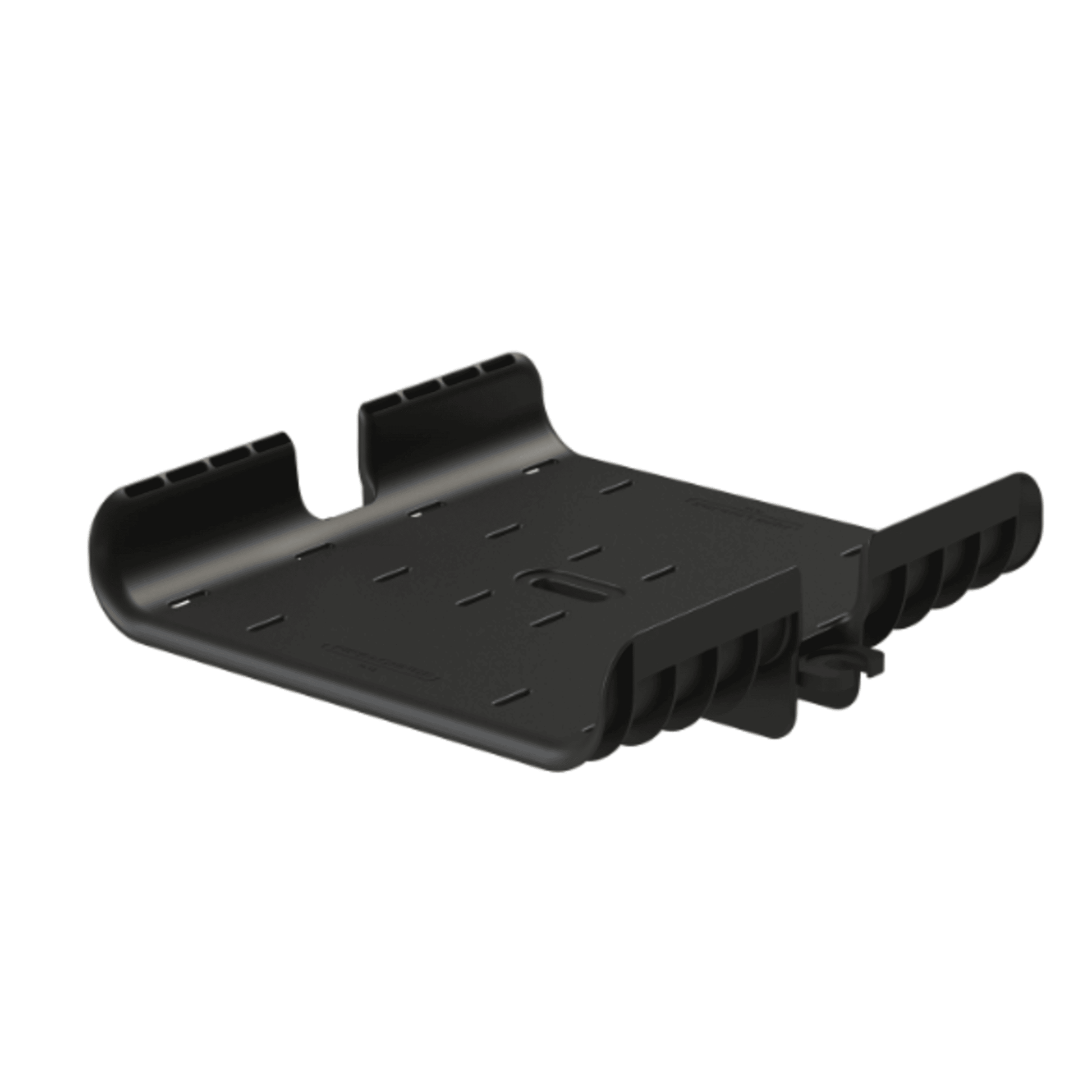

The MALCO PL12 Pipelounge Pipe Support is a modular system designed for HVAC line sets. It securely holds multiple insulated pipes, allowing for expansion and contraction while cushioning them to protect insulation and maintain alignment. This system reduces installation complexity by eliminating the need for multiple strut components. Its modular design allows stacking or joining to accommodate various pipe sizes and configurations, optimizing material use and labor time. It supports up to 110 lbs without strut and installs with standard 3/8 inch threaded rod.
- Designed to hold multiple insulated HVAC line sets
- Allows for expansion and contraction of pipes
- Cushions pipes to protect insulation and maintain proper alignment
Product Highlights
Modular and stackable design for efficient HVAC and mechanical pipe support, reducing installation complexity and material use.
Product Information
Standard Information
-
Brand: MALCO
-
Manufacturer Part Number: PL12
-
Country of Origin: United States
Technical Specifications
-
Material: PC/ABS (non-halogenated flame-resistant)
-
Fire Rating: UL94 classification
-
Load Capacity: 110 lbs (without strut)
-
Recommended Threaded Rod Size: 3/8 inch
-
Mounting Interval: Maximum 5' (60 inches) along pipework, maximum 8 inches from each change in direction
-
Design Type: Modular and stackable
-
Package Quantity: 20
-
Product Width: 12 inch
-
Unit Weight: 1.14 lbs
