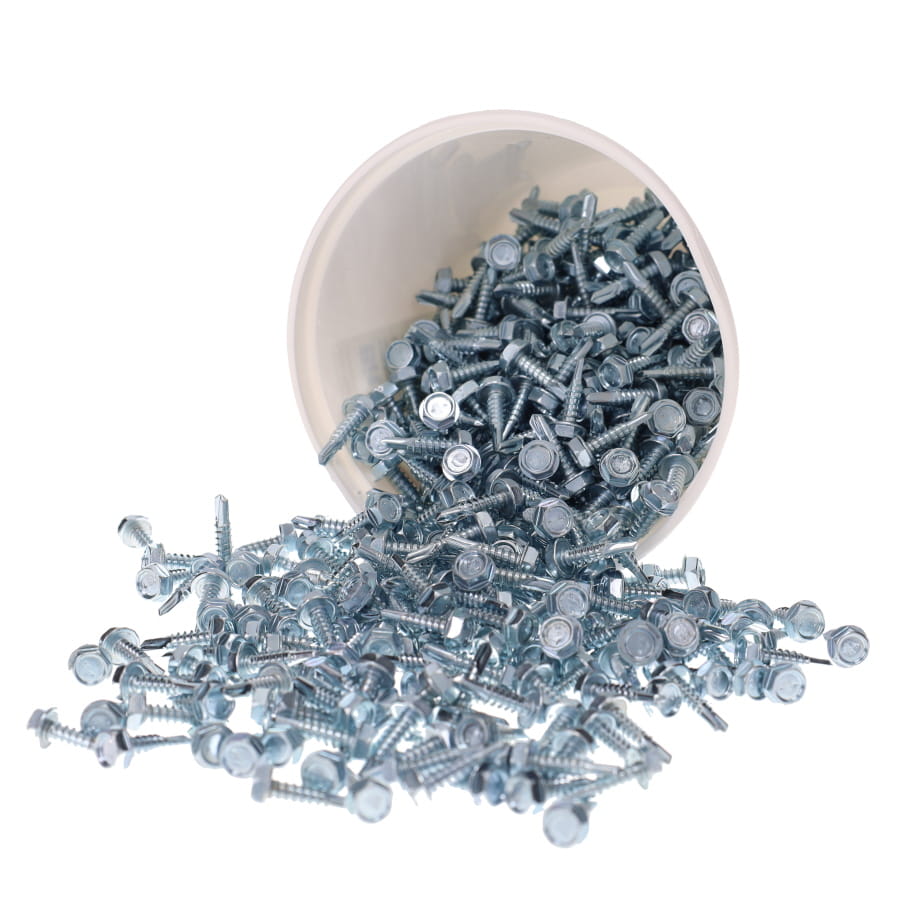

Malco BT143-500 Bit-Tip Self Drilling Screw #10-16

Product Description

The Malco BT143-500 Bit-Tip self-drilling screw produces an optimum hole size for better thread engagement and a tighter fit. This screw is an excellent replacement for rivets, nuts and bolts, spot welds, or adhesives. It is made from strong, high-quality, specially heat-treated steel and requires a standard screw gun power tool rated at 2500 RPM.

• Produces the optimum hole size for better thread engagement.
• Eliminates the need for costly auxiliary fastening equipment.
• Precision cold forged insuring uniformity of dimension and drill point contours.

Product Highlights

The Bit-Tip screw is a versatile, self-drilling and tapping screw with a hex washer head and a No 3 Point, ideal for various industry applications.

Product Information

Standard Information

• Brand: Malco
• Manufacturer Part Number: BT143-500

Technical Specifications

• Measurement System: Imperial
• Size: #10-16
• Head Type: Hex Washer Head
• Drive Style: Hex Drive
• Material: Steel
• Point: No 3 Point
• Drive Size: 5/16 in
• Thread Length: 3/4 in
• Tensile Strength: 2100 lb
• Torsional Strength: 61 lb
• Material Thickness: For 0.035 to 0.1 in thick material
