Malco 55110 Locking C-clamp Swivel Pads 11 Inches

Product Description

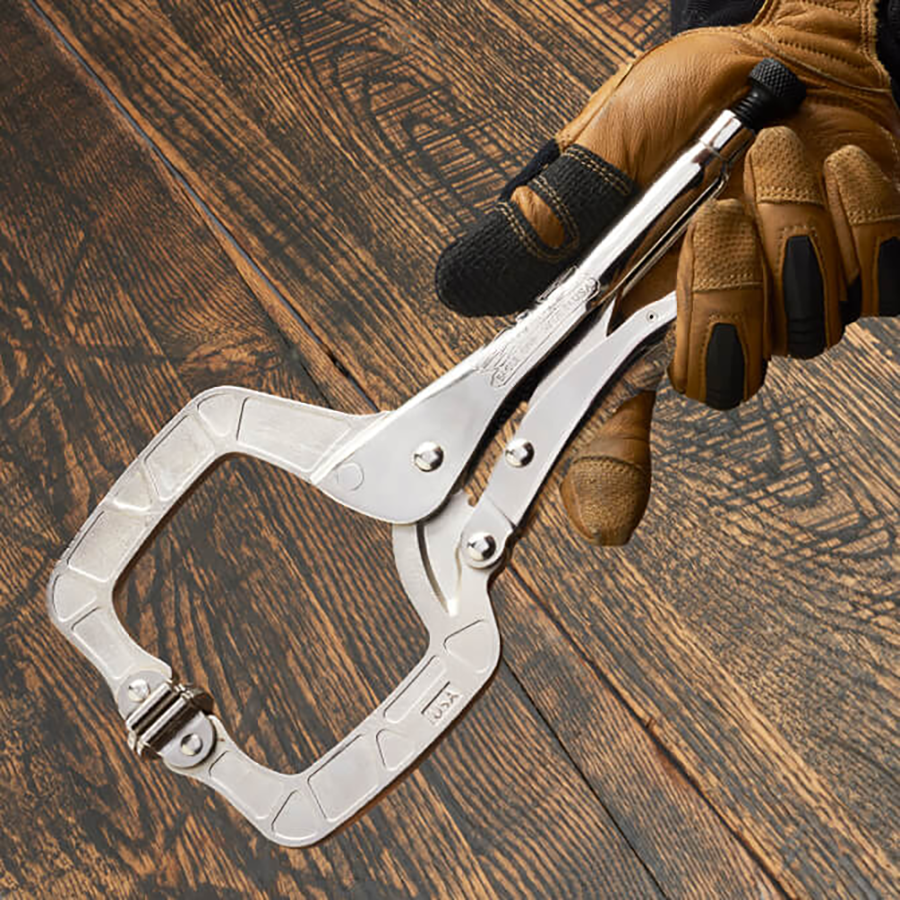

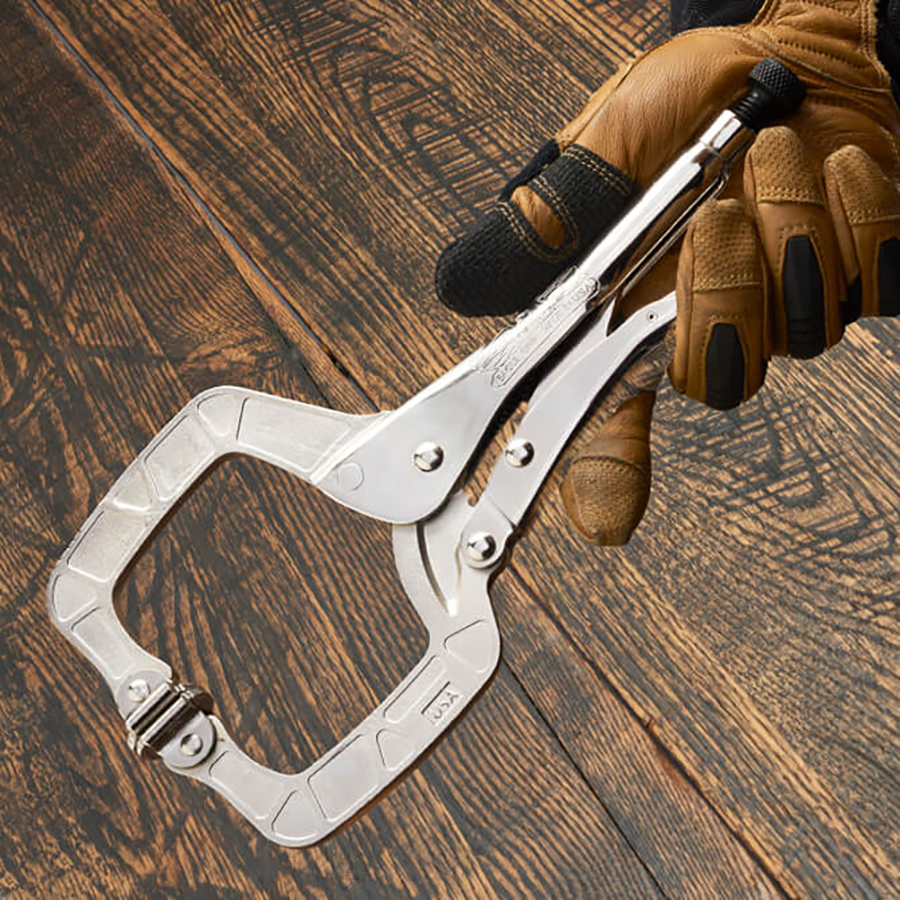

The MALCO 55110 is an 11-inch locking C-clamp with swivel pads, built for sheet metal fabrication, HVAC ductwork assembly, and general trade clamping tasks. Constructed from heat-treated alloy steel, it delivers high clamping force across a maximum clamping range of 3.38 inches. The swivel pads conform to tapered and irregular work surfaces, distributing force evenly to reduce surface marring. A patented Power Ring reinforces thread strength for long-term durability under repeated use. The hardened adjustment knob features an exclusive lubricity coating for smooth, consistent operation. This clamp is designed and manufactured in the United States.

The 55110 is suited for HVAC installers, sheet metal workers, plumbers, and general tradespeople who need reliable clamping during fabrication or assembly. The spacious jaw opening accommodates a variety of material thicknesses and shapes, making it practical for both bench work and field installations. The adjustment screw accepts a 5/16-inch hex key, allowing pressure adjustments in tight spaces where hand-turning the knob is not practical.

Key Features

• 11-inch overall length with a maximum clamping range of 3.38 inches
• Swivel pads conform to tapered and irregular surfaces to reduce damage and improve grip
• Heat-treated alloy steel jaws provide strength and durability for repeated clamping applications
• Patented Power Ring increases thread strength and overall tool longevity
• Hardened adjustment knob with lubricity coating for smooth, controlled tightening
• Adjustment screw accepts a 5/16-inch hex key for use in confined spaces
• American-made construction

Compatibility

Designed as a general-purpose locking C-clamp for sheet metal fabrication, HVAC ductwork, and structural clamping applications across residential and light commercial trade work.

Installation Notes

This clamp is a hand tool and does not require electrical isolation or system shutdown before use. Inspect the swivel pads and adjustment screw threads before each use to confirm they are free of debris and damage. Do not exceed the rated clamping range, as overextension can reduce thread engagement and compromise holding force. A 5/16-inch hex key is required to adjust clamping pressure when the knob cannot be turned by hand.

Technical Specifications

• Overall Length: 11 inches
• Maximum Clamping Range: 3.38 inches
• Jaw Material: Heat-treated alloy steel
• Hex Key Size (Adjustment Screw): 5/16 inch
• Country of Origin: United States

Standard Information

• Brand: MALCO
• Manufacturer Part Number: 55110
