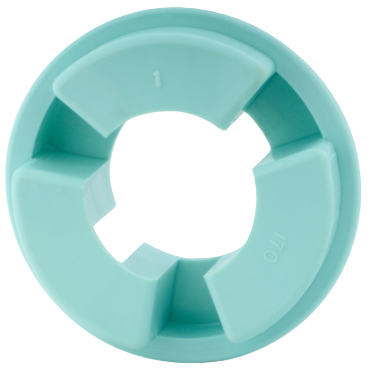

Magnaloy M770H5 Flexible Coupling Insert

Product Description

The Magnaloy M770H5 is a flexible coupling insert designed for reliable performance in various applications. This insert works with specific horsepower and RPM needs, making it versatile for different setups. Notably, the magnesium construction ensures that this coupling is lightweight while maintaining strength.

• Size: 700
• Material: Hytrel
• Temperature Range: -65 °F to 300 °F

Product Highlights

The M770H5 provides excellent fluid compatibility and high-temperature resilience, making it suitable for heavy-duty conditions. The one-piece design simplifies installation and operation.

Product Information

Standard Information

• Brand: Magnaloy Coupling Co.
• Part #: 100439943

Technical Specifications

• Coupling Size: 700
• Temperature Range [Min]: -65 °F
• Temperature Range [Max]: 300 °F
• Color: Blue/Green
• Hardness: 50
• No. of Legs: 6
• Insert Style: One Piece
• Material: Hytrel
• HP @ RPM: 46.5 hp @ 100 rpm, 558.75 hp @ 1200 rpm, 838 hp @ 1800 rpm
• Torque Rating: 29099.5 in lb
• Weight: 1.2 LB
