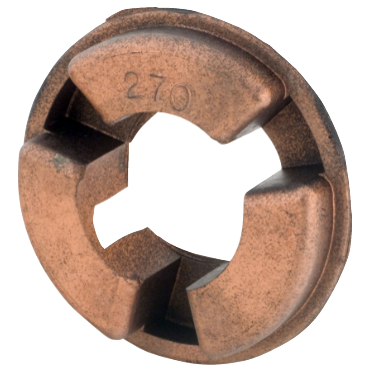

Magnaloy Coupling Co. M970N8 Flexible Coupling Insert

Product Description

The Magnaloy Coupling Co. M970N8 is a flexible coupling insert made from neoprene. This insert is designed to be compatible with varying horsepower and RPM requirements. It is essential to choose the appropriate shaft diameter and keyway size based on the specifications below.

• Helps in reducing vibration and misalignment
• Lightweight magnesium construction, significantly reducing overall weight
• Temperature range of -30 degrees Fahrenheit to 250 degrees Fahrenheit

Product Highlights

Lightweight, durable, and designed for various applications, this coupling insert can be paired with matching coupling halves for effective operation.

Product Information

Standard Information

• Hardness: 80
• Material: Neoprene

Technical Specifications

• HP @ RPM: 76.5 hp @ 100 rpm, 918.6 hp @ 1200 rpm, 1377.9 hp @ 1800 rpm
• No. of Legs: 6
• Temperature Range [Max]: 250 degrees Fahrenheit
• Torque Rating: 47842.3 in lb
• Insert Style: One Piece
• Coupling Size: 900
• Color: Gold
• Temperature Range [Min]: -30 degrees Fahrenheit
• Weight: 3.8 lb
