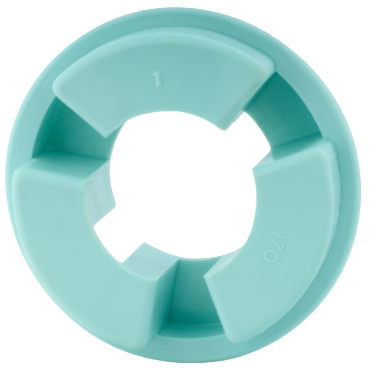

Magnaloy Coupling Co. M870H5 Flexible Coupling Insert

Product Description

The Magnaloy Coupling Co. M870H5 is a flexible coupling insert designed for reliability and efficient operation. This insert is suitable for use with specific horsepower and RPM requirements, and can easily be matched with compatible coupling halves. It features a unique magnesium construction that is significantly lighter than traditional options.

• Weight of only 1.8 lbs.
• Temperature range from -65 degrees Fahrenheit to 300 degrees Fahrenheit.
• Compatible with various horsepower and RPM applications.

Product Highlights

This insert is ideal for heavy-duty applications and ensures superior performance under demanding conditions.

Product Information

Standard Information

• Brand: Magnaloy Coupling Co.
• Part Number: 100439984

Technical Specifications

• Insert Style: One Piece
• Material: Hytrel
• Color: Blue/Green
• Hardness: 50
• Temperature Range [Min]: -65 °F
• Temperature Range [Max]: 300 °F
• Number of Legs: 6
• Torque Rating: 47062.2 in lb
• Coupling Size: 800
• HP @ RPM: 75.2 hp @ 100 rpm, 903 hp @ 1200 rpm, 1354.5 hp @ 1800 rpm
• Weight: 1.8 lb
