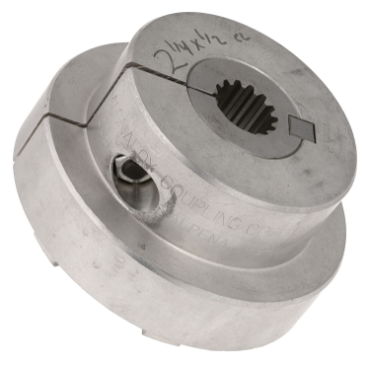

Magnaloy Coupling Co. M600B1412C Flexible Coupling Spline Bore Hub

Product Description

The Magnaloy Coupling Co. M600B1412C is a flexible coupling spline bore hub designed for joining the shafts of electric motors, hydraulic pumps, or gearboxes. This coupling is ideal for ensuring alignment and transferring energy efficiently.

• Corrects spline tooth failures in demanding applications
• Lightweight magnesium construction offers superior strength
• Easy installation with low maintenance needs

Product Highlights

This coupling is engineered for robustness and ease of use, making it suitable for various applications, including heavy cyclic loads and high torque situations.

Product Information

Standard Information

• Brand: Magnaloy Coupling Co.
• Part Number: 100439883

Technical Specifications

• Coupling Size: 600
• Length Through Bore: 2.31 inches
• Lock Type: Steel Bushed & Clamp Style
• Outside Diameter: 5.975 inches
• Spline Description: 12/24
• Hub Diameter: 4.5 inches
• Spline Size: 14T 12/24
• Number of Teeth: 14
• Material: Magnesium Titanium
• Overall Assembly Length: 5.98 inches
• Weight: 4.992 pounds
