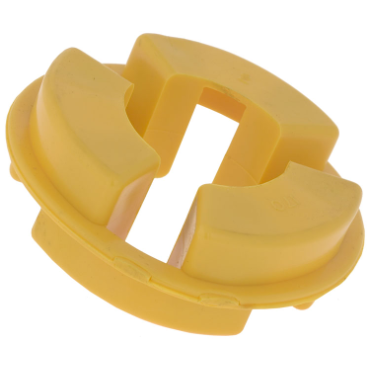

Magnaloy Coupling Co. M570U9 Flexible Coupling Insert

Product Description

The Magnaloy Coupling Co. M570U9 is a flexible coupling insert designed for various applications. This product is constructed from durable urethane and can handle a temperature range from minus thirty degrees Fahrenheit to one hundred fifty degrees Fahrenheit.

• Suitable for horsepower and rpm requirements.
• 56% lighter than cast iron and 36% lighter than aluminum.
• Available in a size of five hundred.

Product Highlights

This flexible coupling insert is effective in medium-duty applications, providing durability and resilience.

Product Information

Standard Information

• Brand: Magnaloy Coupling Co.
• Part Number: 100439842

Technical Specifications

• Material: Urethane
• Temperature Range (Max): 150 °F
• Temperature Range (Min): -30 °F
• Hardness: 90
• Torque Rating: 3292.2 in lb
• Bore Size (Max): 2.375 in
• Coupling Size: 500
• HP @ 1,800 rpm: 94.8 hp
• HP @ 1,200 rpm: 63.2 hp
• HP @ 100 rpm: 5.3 hp
• Weight: 1.5 lb
• NSN Number: 3010-01-224-8610
