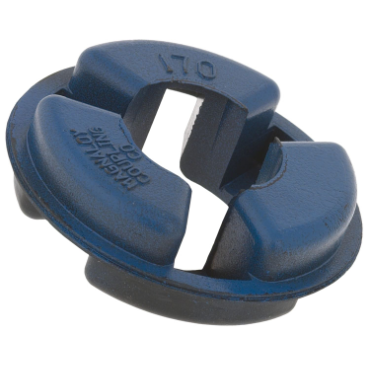

Magnaloy Coupling Co. M470B8 Flexible Coupling Insert

Product Description

The Magnaloy Coupling Co. M470B8 is a flexible coupling insert designed for efficient power transmission. This insert is suitable for various horsepower and RPM requirements, making it a versatile option for many applications.

• Constructed from high-quality nitrile material.
• Compatible with multiple coupling halves.
• Works effectively in extreme temperature ranges from minus sixty degrees Fahrenheit to plus two hundred fifty degrees Fahrenheit.

Product Highlights

This flexible coupling insert ensures high resistance to abrasion and excellent compatibility with petroleum products.

Product Information

Standard Information

• Part Number: M470B8
• Brand: Magnaloy Coupling Co.

Technical Specifications

• Insert Style: One Piece
• HP @ RPM: 1.69 hp @ 100 rpm, 20.3 hp @ 1200 rpm, 30.4 hp @ 1800 rpm
• Color: Blue
• No. of Legs: 3
• Temperature Range [Min]: -60 °F
• Torque Rating: 1056.3 in lb
• Hardness: 80
• Material: Nitrile
• Coupling Size: 400
• Temperature Range [Max]: 250 °F
• Weight: 1.2 LB
