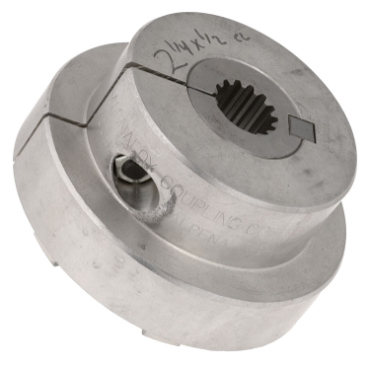

Magnaloy Coupling Co. M400A1316C Flexible Coupling Spline Bore Hub

Product Description

The Magnaloy Coupling Co. M400A1316C is a flexible coupling designed to connect the shafts of electric motors to hydraulic pumps or gearboxes. This coupling facilitates alignment and energy transfer between components.

• Clamp-style design for secure attachment
• Constructed from lightweight magnesium for improved strength
• Vibration-free operation for enhanced performance

Product Highlights

This coupling provides ease of handling and installation. It is also rustproof and corrosion-resistant, making it suitable for various environments.

Product Information

Standard Information

• Brand: Magnaloy Coupling Co.
• MPN: M400A1316C

Technical Specifications

• Lock Type: Clamp-Style
• No. of Teeth: 13
• Coupling Size: 400
• Length Through Bore: 1.52 inches
• Hub Diameter: 3.05 inches
• Outside Diameter: 3.98 inches
• Material: Magnesium Titanium
• Overall Assembly Length: 4.24 inches
• Spline Size: 13T 16/32
• Spline Description: 16/32
• Weight: 1.5 pounds
