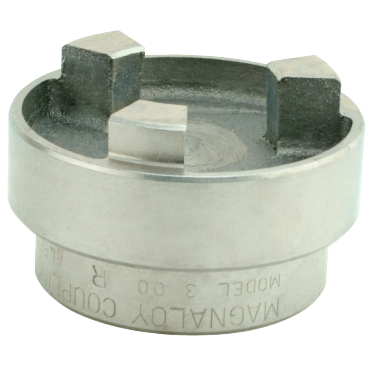

Magnaloy Coupling Co. M200R Flexible Coupling Hub

Product Description

The Magnaloy Coupling Co. M200R is a flexible coupling hub used for connecting shafts of electric motors to hydraulic pumps or gearboxes. This coupling aids in aligning the shafts and transmitting energy from the motor to the pump or gearbox efficiently.

• Constructed from lightweight magnesium that offers more strength than traditional cast iron and aluminum
• Minimizes load on bearings, shafts, and pumps for enhanced longevity
• Designed for easy handling and straightforward installation

Product Highlights

Corrosion-resistant and rustproof design ensures durability, while close machining tolerances provide vibration-free operation and accurate alignment without requiring special tools.

Product Information

Standard Information

• Brand: Magnaloy Coupling Co.
• Part Number: 105828578

Technical Specifications

• Length Through Bore: 1.1 inches
• Hub Diameter: 2.25 inches
• Outside Diameter: 2.9 inches
• Input Bore Range: 0 to 1.375 inches
• Maximum Bore Diameter: 1.375 inches
• Coupling Size: 200
• Weight: 0.45 pounds
