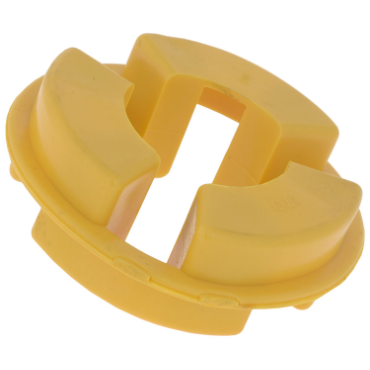

Magnaloy Coupling Co. M170U9 Flexible Coupling Insert

Product Description

The Magnaloy Coupling Co. M170U9 is a flexible coupling insert designed for various applications. It is suitable for different coupler sizes based on horsepower and RPM needs. The insert is ordered separately from the coupling halves. This coupling insert is made from urethane and is ideal for medium-duty tasks.

• Excellent mechanical and physical properties
• Lightweight construction enhances usability
• Usable in a wide temperature range from -30 °F to 150 °F

Product Highlights

This coupling offers good durability and resiliency, making it a reliable choice for trade professionals in HVAC, plumbing, and similar fields.

Product Information

Standard Information

• Brand: Magnaloy Coupling Co.
• Part Number: 100439613

Technical Specifications

• Coupling Size: 100
• Material: Urethane
• Color: Yellow
• Hardness: 90
• Temperature Range [Max]: 150 °F
• Temperature Range [Min]: -30 °F
• Weight: 0.4 LB
• Torque Rating: 511 in lb
• Bore Size [Max]: 1.125 in
• HP @ 1,200 RPM: 9.8 hp
• HP @ 1,800 RPM: 14.7 hp
• HP @ 100 RPM: 0.82 hp
