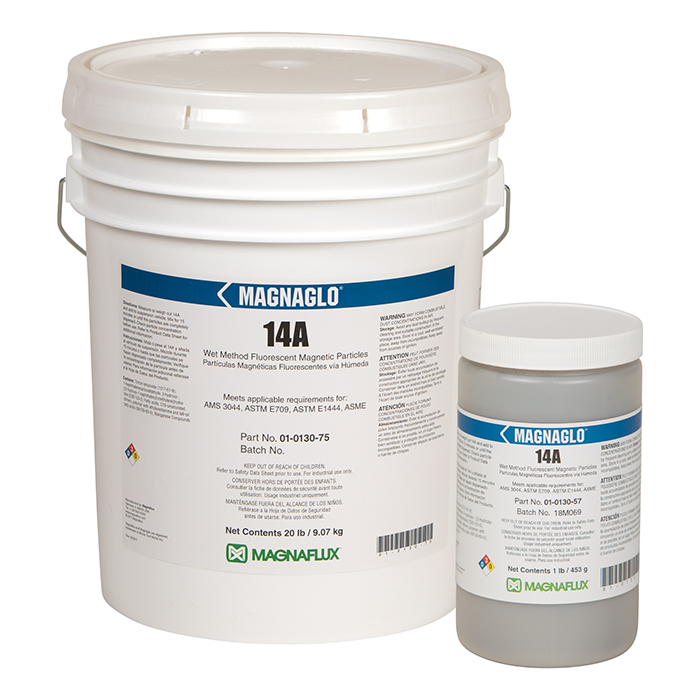

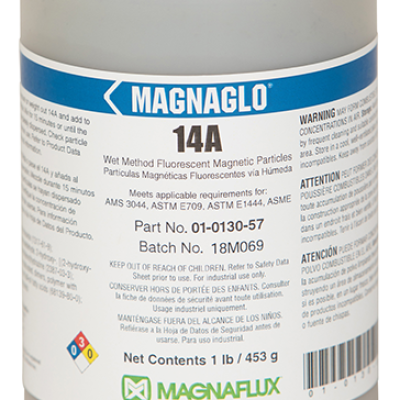

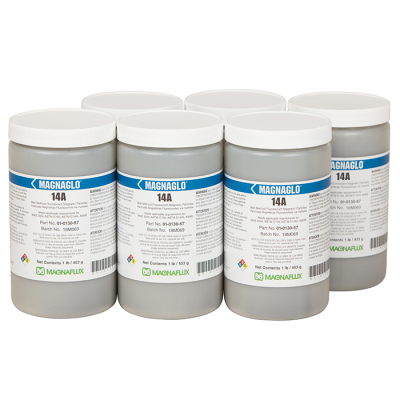

MAGNAFLUX 01-0130-57 MagnaGlo Fluorescent Magnetic Particle Powder

Product Description

MAGNAFLUX 14A MagnaGlo, with MPN 01-0130-57, is a fluorescent magnetic particle powder designed for detecting fine discontinuities in critical components. This powder's optimized size and shape ensure efficient movement towards indications while minimizing background noise and clumping. It appears as a free-flowing brown powder that fluoresces yellow-green when exposed to UV light.

• Detects fine discontinuities effectively.
• Fluoresces bright yellow-green under UV light.
• Compatible with wet method magnetic particle inspection.

Product Highlights

MAGNAFLUX 14A is suitable for use in various industries, including manufacturing and maintenance, where non-destructive testing is essential for quality assurance.

Product Information

Standard Information

• Brand: MAGNAFLUX
• Container Size: 1 lb. jar

Technical Specifications

• MPN: 01-0130-57
• NDT Method: Magnetic Particle Testing, Fluorescent, Wet Method
• Appearance: Fine, dry powder
• Color in Visible Light: Brown
• Color in UV Light: Fluorescent yellow-green
• Mean Particle Size: 6 microns
• SAE Sensitivity: 8-9
• Suspension Vehicle: Water or petroleum distillate (oil)
• Usage Temperature: 42 to 120 °F / 6 to 48 °C
• Storage Temperature: 50 to 86 °F / 10 to 30 °C
• Settling Volume: 0.1 - 0.4 mL
• Standards Met: AMS 3044, ASTM E709, ASTM E1444, ASME BPVC, ISO 9934, and more.
