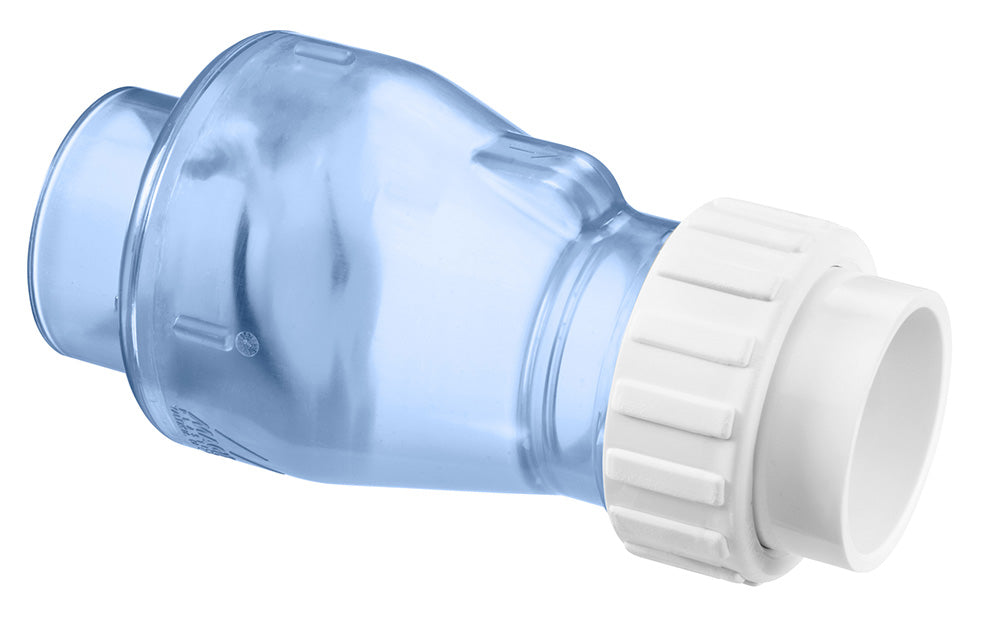

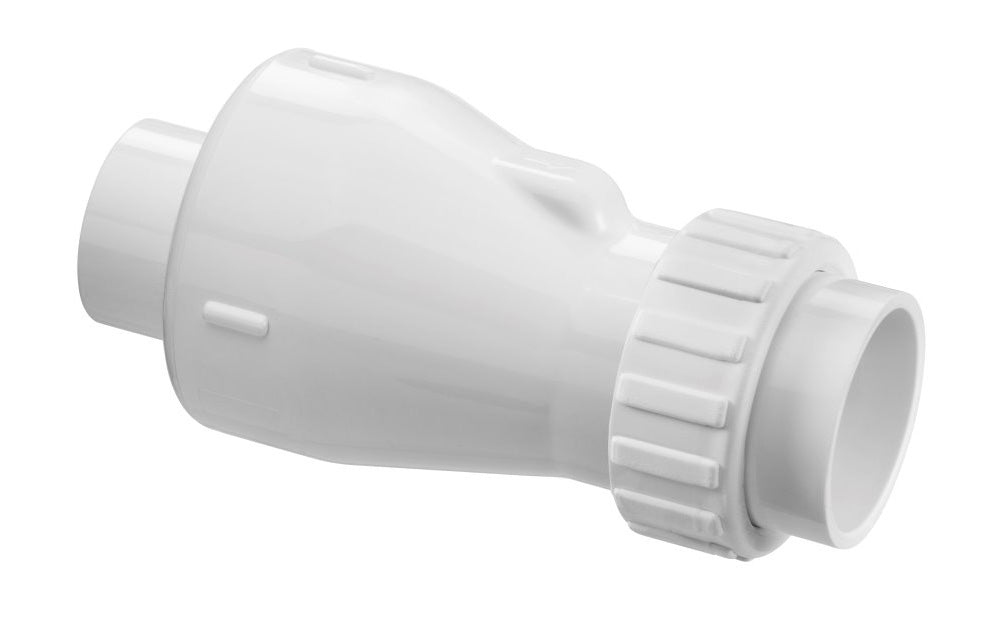

Magic Plastics 0823-15 Smart Check 1½'' Union x Union

Product Description

The Magic Plastics 0823-15 Smart Check provides reliable back-flow prevention without the inline restriction of a conventional check valve. Utilizing high-powered magnets, this check valve remains closed to 2 PSI, fully opening when 2 lb. line pressure is exceeded. It features a spring-loaded gate mechanism, enabling installation in any orientation.

• Reliable back-flow prevention
• High powered magnets
• Spring-Loaded gate mechanism

Product Highlights

The Smart Check valve offers reliable back-flow prevention with a spring-loaded gate mechanism, and can be installed in any orientation.

Product Information

Standard Information

• Brand: MAGIC PLASTICS
• Manufacturer Part Number: 0823-15
• Country of Origin: United States

Technical Specifications

• Part Number: 0823-15
• Size and Detail Description: 1 ½'' Union x Union
• Spring Tension: ½ lb.
• IPS Size: 1 ½''
• Manufacturer Part Number: B-0823-15
• Manufacturer: CAMPBELL MANUFACTURING LLC
• Brand: Magic Plastics
• Model: B-0823-15
• Type: Check Valve
• Material: Plastic
• Item Width: 3.30
• Item Height: 9.50
• Item Length: 3.3
• Item Weight: 1.2
• Country of Origin: United States
• Dimension: 1½'' Union x Union
