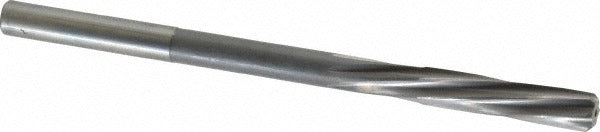

Magafor 88860006380 Carbide Chucking Reamer 0.2512 in

Product Description

The MAGAFOR 88860006380 is a solid carbide chucking reamer designed for precision hole finishing in machine shop and production environments. With a 0.2512-inch cutting diameter and a tight diameter tolerance of 0.0000 to +0.0005 mm, this reamer delivers accurate, repeatable results in close-tolerance bores. The bright polished finish reduces friction and aids chip flow. Six flutes with a left-hand spiral and right-hand cutting direction provide smooth material removal and clean surface finishes. Machinists and tool-and-die professionals use this reamer in CNC machining centers, drill presses, and manual lathes where hole size and finish are critical.

This chucking reamer is suited for precision finishing operations in metalworking applications requiring tight dimensional control. The straight shank allows secure mounting in standard drill chucks or collet holders. With an overall length of 3-31/32 inches and a flute length of 1-7/64 inches, it is appropriate for through-holes and blind bores of moderate depth in ferrous and non-ferrous materials. The solid carbide construction supports use in harder materials and at higher speeds than high-speed steel alternatives.

Key Features

• Solid carbide construction for superior hardness and wear resistance
• 0.2512-inch cutting diameter with tolerance of 0.0000 to +0.0005 mm for close-tolerance work
• 6-flute left-hand spiral, right-hand cut geometry for smooth material removal and reduced chatter
• Bright polished finish minimizes built-up edge and aids chip evacuation
• Straight shank fits standard chucks and collet holders without adapters
• 3-31/32-inch overall length with 1-7/64-inch flute length suits moderate-depth bore applications

Compatibility

Designed as a machine chucking reamer for use in CNC machining centers, drill presses, and similar machine tool setups requiring a 0.2512-inch finished bore diameter with a straight-shank tool holder.

Installation Notes

Installation and use should be performed by qualified machinists familiar with reaming operations. Ensure the spindle and workpiece are properly secured before operation and that the reamer is running true with minimal runout in the holder. Select appropriate cutting speeds and feeds for the workpiece material per tooling reference standards, as carbide tooling is sensitive to improper feed rates. Cutting fluid or coolant is recommended to extend tool life and improve surface finish.
