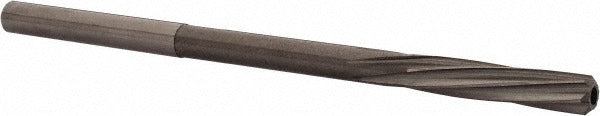

Magafor 88860004080 Chucking Reamer 0.1606 in Solid Carbide

Product Description

The MAGAFOR 88860004080 is a solid carbide chucking reamer designed for precision hole finishing in metalworking and machining applications. With a reamer diameter of 0.1606 inches and a diameter tolerance of 0.0000 to +0.0004 mm, this tool holds tight dimensional accuracy required for close-tolerance bores. The six-flute, spiral-flute geometry with a left-hand spiral and right-hand cutting direction promotes smooth chip evacuation and a refined surface finish. The bright polished coating reduces friction and extends tool life. Machinists and tool room technicians install this reamer in CNC machining centers, drill presses, and manual lathes equipped with standard chucks or collets.

This chucking reamer is suited for finishing pre-drilled or bored holes in ferrous and non-ferrous metals where dimensional consistency is critical. The straight shank fits standard chucks and collet holders common to production and job-shop environments. With an overall length of 2-61/64 inches and a 3/4 inch flute length, the tool is sized for shallow-to-moderate depth reaming in typical fixture and part setups. It is sold individually and is a direct pick for applications requiring precision in the 0.1500 to 0.1999 inch diameter range.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard or abrasive materials
• Six flutes with left-hand spiral geometry for smooth chip flow and consistent surface finish
• Right-hand cutting direction compatible with standard spindle rotation
• Bright polished finish reduces built-up edge and lowers cutting friction
• Diameter tolerance of 0.0000 to +0.0004 mm supports close-tolerance bore requirements
• Straight shank fits standard chucks and collet systems without adapters

Compatibility

Designed as an OEM-style precision reamer for use in machining centers, drill presses, and lathes equipped with standard straight-shank chucks or collet holders accepting tools in the 0.1500 to 0.1999 inch diameter range.

Installation Notes

Installation is performed by qualified machinists familiar with rotating cutting tool setups. Secure the straight shank fully in a matched chuck or collet and verify runout before cutting. Power down the spindle completely before tool changes and follow applicable shop safety procedures for carbide tooling. Do not exceed recommended feed and speed parameters for the workpiece material to avoid chipping the carbide cutting edges.
