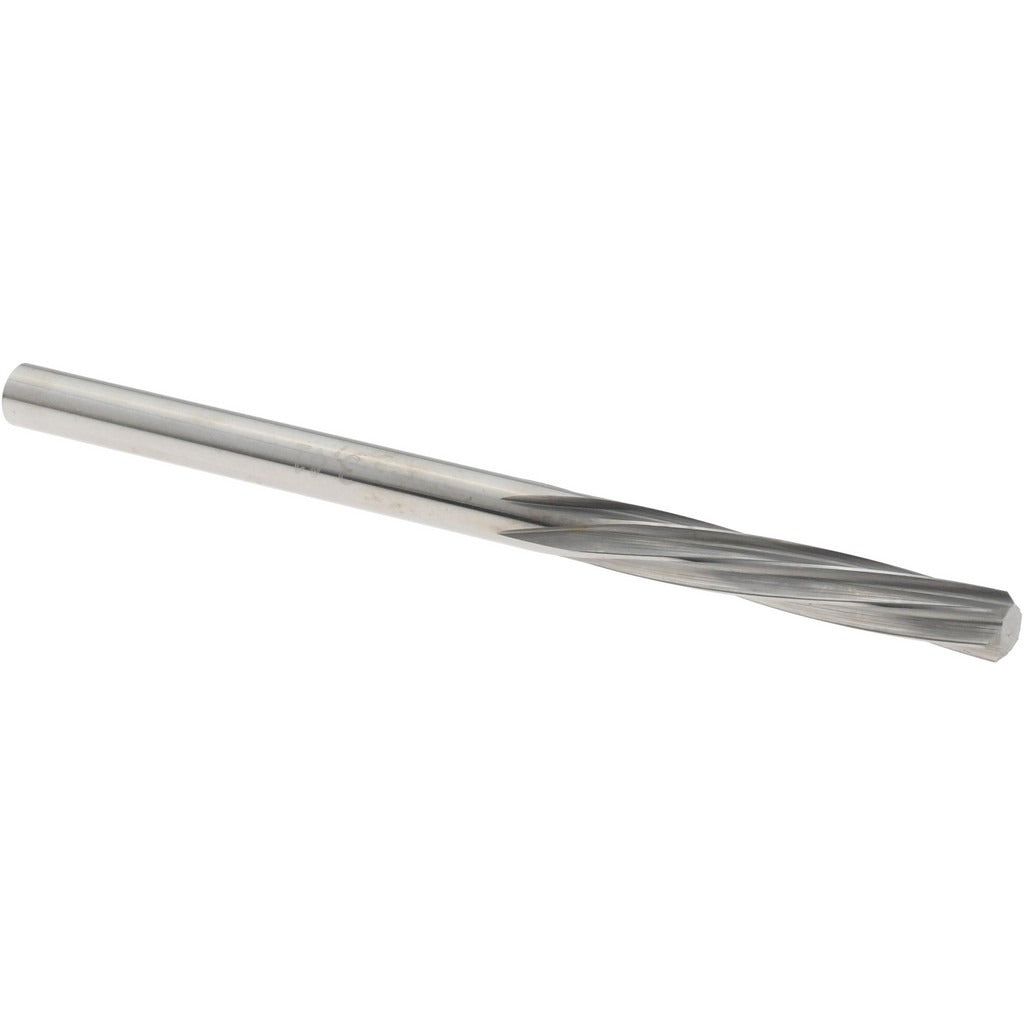

Magafor 88860003410 Chucking Reamer 0.1343 in Solid Carbide

Product Description

The MAGAFOR 88860003410 is a solid carbide chucking reamer designed for precision hole finishing in machine tool applications. Part of the Series 8600 lineup, it features a 0.1343-inch diameter with a tight tolerance of 0.0002 inches, a 2.25-inch overall length, and a 0.5900-inch flute length. The six-flute spiral geometry with left-hand spiral direction improves chip evacuation while the right-hand cutting direction delivers consistent, smooth bore finishes. The bright, uncoated carbide construction is suited for high-rigidity setups requiring close dimensional control on small-diameter holes.

This reamer is intended for use in CNC machining centers, drill presses, and manual mills where finish reaming of small-diameter bores is required. The straight-cylindrical shank allows straightforward mounting in standard collet chucks or drill chucks without adapter hardware. It is a practical choice for precision work on ferrous and non-ferrous materials where hole size and surface finish tolerance are critical. Machinists and toolroom technicians working in production or maintenance environments will find it well-suited to close-tolerance finishing passes.

Key Features

• 0.1343-inch reamer diameter with 0.0002-inch diameter tolerance for tight bore control
• Solid carbide construction provides rigidity and wear resistance in demanding cuts
• Six-flute spiral geometry with left-hand spiral and right-hand cut for smooth chip flow
• Bright, uncoated finish - ready to use or suitable for additional coating if required
• Straight-cylindrical shank mounts directly in standard collets and chucks
• No coolant-through requirement simplifies setup on standard machine configurations

Compatibility

Designed as a standard chucking reamer for use in machine tools accepting straight-cylindrical shank tooling; verify shank diameter and chuck capacity before mounting.

Installation Notes

Chucking reamers should be installed by qualified machinists or toolroom personnel familiar with machine tool setup. Ensure the spindle and workpiece are fully secured and the machine is powered down before changing tooling. Use appropriate cutting fluid or dry cutting conditions as specified for the workpiece material, and confirm chuck runout is within acceptable limits before running the reamer to avoid oversizing the bore or damaging the tool.
