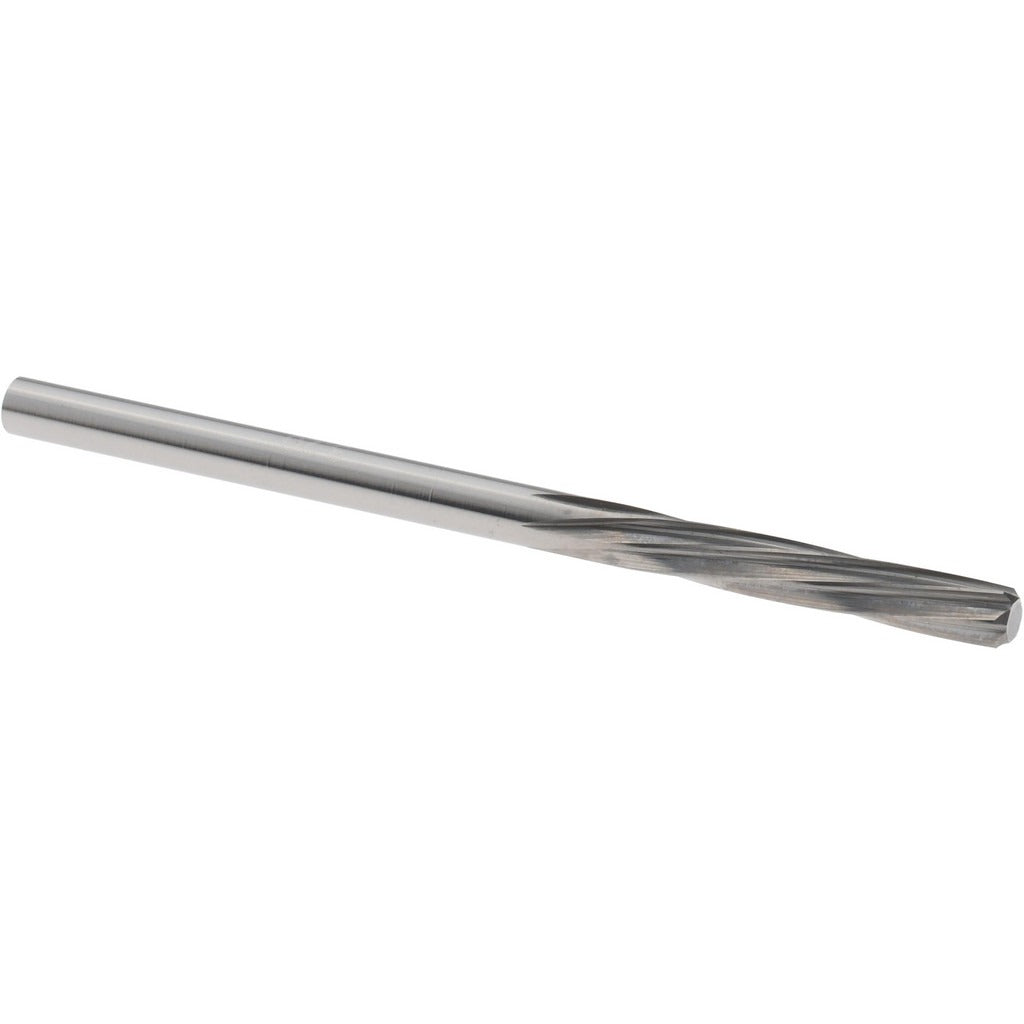

Magafor 88860003200 Chucking Reamer 0.126 in Solid Carbide

Product Description

The MAGAFOR 88860003200 is a solid carbide chucking reamer designed for precision hole finishing in machine shop and production environments. Part of the Series 8600 line, it features a 0.1260-inch diameter with a tolerance of 0.0002 inches, making it suitable for tight-tolerance bore work. The straight-cylindrical shank allows direct chucking in standard collet or drill chuck setups. With 6 flutes and a left-hand spiral configuration combined with right-hand cutting direction, this reamer provides smooth, controlled material removal. Machinists and tool-and-die technicians use this reamer where hole size accuracy and finish quality are critical requirements.

This reamer is intended for use in CNC machining centers, drill presses, and manual mills where precision reaming of small-diameter holes is required. The 0.5938-inch flute length and 2.25-inch overall length make it well suited for through-hole and shallow blind-hole applications in the 0.1000-to-0.1499-inch diameter range. The bright, uncoated finish is appropriate for use in ferrous and non-ferrous materials where coating is not required. No coolant-through capability is present, so external coolant or cutting fluid application is standard practice for this tool.

Key Features

• Solid carbide construction for rigidity and wear resistance in precision reaming
• 0.1260-inch reaming diameter with 0.0002-inch diameter tolerance for tight-tolerance bores
• 6-flute, left-hand spiral geometry with right-hand cutting direction for smooth finish
• Straight-cylindrical shank for direct chucking in collets or drill chucks
• Bright, uncoated finish suitable for a range of workpiece materials
• Series 8600 design - no coolant-through, no over/under sizing

Compatibility

Designed as a standard chucking reamer for machine tool spindles accepting a straight-cylindrical shank; fits applications requiring precision reaming in the 0.1000-to-0.1499-inch diameter range.

Installation Notes

Installation and use of this reamer should be performed by a qualified machinist. Ensure the machine spindle and collet or chuck are clean and within tolerance before seating the shank. Power down and de-energize the machine before tool changes. Always apply appropriate cutting fluid when reaming to extend tool life and maintain hole finish quality.
