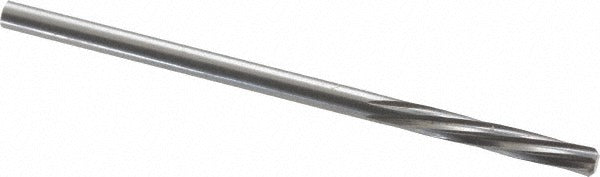

Magafor 88860002700 Chucking Reamer 0.1065 in Solid Carbide

Product Description

The MAGAFOR 88860002700 is a solid carbide chucking reamer designed for precision hole finishing in machine shop and production environments. Built with a straight shank and six spiral flutes with left-hand spiral geometry, it delivers right-hand cutting action that helps clear chips efficiently and maintain tight bore tolerances. The reamer holds a diameter tolerance of 0.0000 to +0.0003 mm, making it suitable for applications where hole size consistency is critical. Licensed machinists and tool-and-die professionals use this style of reamer in CNC machining centers, drill presses, and manual mills to bring drilled or bored holes to final dimension.

This chucking reamer is suited for finishing operations on small-diameter holes in ferrous and non-ferrous materials where surface finish and dimensional accuracy are priorities. The bright polished finish reduces friction and buildup during cutting. With an overall length of 2.25 inches and a flute length of 0.594 inches, the 88860002700 fits into standard drill chucks and collet holders accepting straight-shank tooling. It is appropriate for light stock-removal passes as the final sizing step after drilling or rough boring.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard or abrasive materials
• Six-flute left-hand spiral geometry with right-hand cutting direction for efficient chip evacuation
• Diameter tolerance of 0.0000 to +0.0003 mm for consistent, repeatable hole sizing
• Bright polished finish reduces friction and material adhesion during the cut
• Straight shank compatible with standard drill chucks and collet systems
• Wire gauge size No. 36 equivalent nominal diameter

Compatibility

Designed as an OEM-style chucking reamer for use in standard drill chucks, ER collet holders, and straight-shank tooling systems on CNC machining centers, drill presses, and manual mills requiring a 0.1065-inch nominal reamer diameter.

Installation Notes

Chucking reamers are installed and serviced by machinists and toolroom professionals. Ensure the machine spindle is fully stopped and the tool holder is de-energized before mounting or removing the reamer. Secure the straight shank firmly in a drill chuck or collet to the manufacturer-specified clamping range to prevent slippage. Always run reamers at appropriate speeds and feeds for the workpiece material, using cutting fluid where required, and take only light finishing passes to stay within the tool's stock-removal design range.
