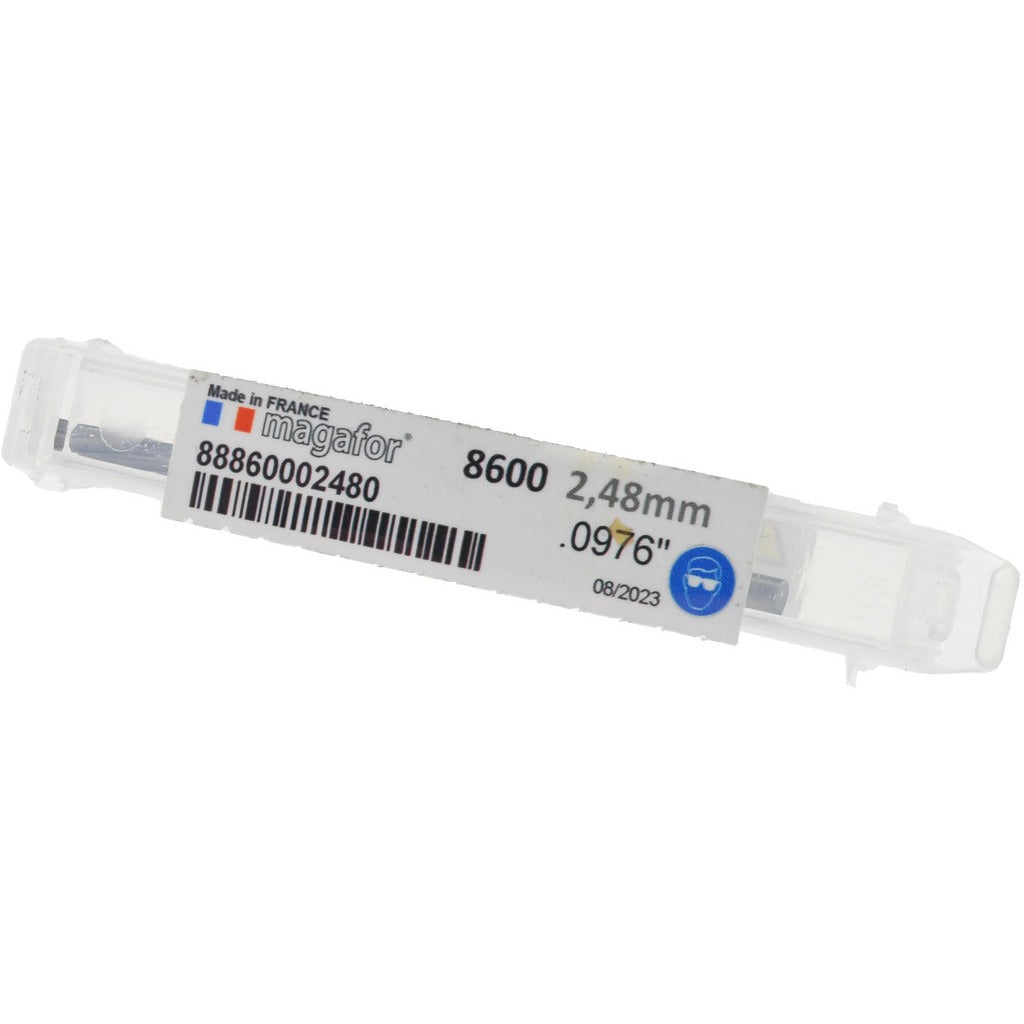

Magafor 88860002480 Chucking Reamer 0.0976 in Solid Carbide

Product Description

The MAGAFOR 88860002480 is a solid carbide chucking reamer designed for precision hole finishing in tight-tolerance machining applications. Part of the Series 8600 lineup, it features a 0.0976-inch cutting diameter with a reamer diameter tolerance of 0.0002 inches, making it appropriate for work where bore accuracy is critical. The straight-cylindrical shank seats securely in standard chuck toolholding. With six spiral flutes and a bright, uncoated finish, this reamer is built for machinists and toolroom professionals who need consistent, repeatable results in small-diameter bores.

This reamer is suited for small-bore finishing operations in precision machining environments, including production shops, toolrooms, and job shops working with close-tolerance holes in the 0.0976-inch range. The spiral left-hand flute geometry combined with right-hand cutting direction helps evacuate chips efficiently during through-hole reaming. At 2.25 inches overall length with a 0.5900-inch flute length, it fits applications requiring a compact reach. Machinists working with materials where carbide outperforms high-speed steel will find this tool appropriate for achieving smooth, dimensionally accurate bores.

Key Features

• Solid carbide construction for superior hardness and wear resistance compared to HSS
• 0.0002-inch diameter tolerance for tight, repeatable bore sizing
• Six spiral flutes with left-hand spiral and right-hand cutting direction for efficient chip evacuation
• Straight-cylindrical shank for compatibility with standard chuck toolholding
• Bright, uncoated finish suitable for a wide range of workpiece materials
• Compact 2.25-inch OAL with 0.5900-inch flute length for small-diameter precision work

Compatibility

Designed as an OEM-style chucking reamer for use in standard drill chucks and collet holders accepting straight-cylindrical shanks in precision machining setups requiring a 0.0976-inch finished bore diameter.

Installation Notes

Installation and use of this tool should be performed by qualified machinists familiar with reaming operations and toolroom safety practices. Ensure the machine spindle is fully stopped and the workpiece is securely fixtured before tool changes. Use appropriate cutting fluid or coolant compatible with solid carbide tooling to extend tool life, even though this tool does not have through-coolant capability. Do not use this reamer to remove excessive stock; pre-drill or bore the hole to the correct undersize before reaming.
