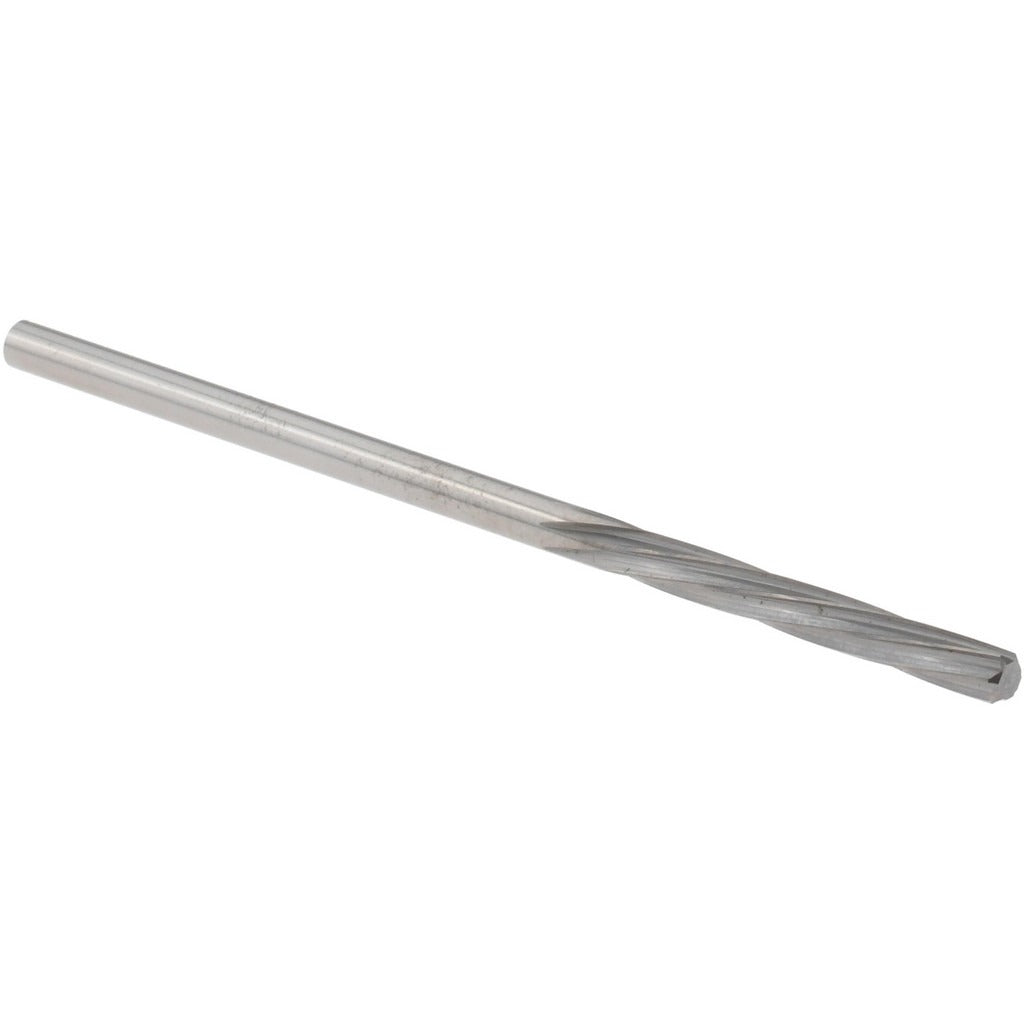

Magafor 88860002410 Chucking Reamer 0.0949in Solid Carbide

Product Description

The MAGAFOR 88860002410 is a solid carbide chucking reamer designed for precision hole finishing in metalworking and machining applications. Built to Series 8600 standards, it produces tight-tolerance bores with a reamer diameter of 0.0949 inches and a diameter tolerance of plus or minus 0.0002 inches. The 6-flute, left-hand spiral geometry with right-hand cutting direction improves chip evacuation and surface finish in small-diameter holes. The bright, uncoated carbide construction is well suited to a range of ferrous and non-ferrous materials. Machinists and tool-and-die professionals use this reamer where dimensional accuracy and bore finish quality are critical.

This reamer is intended for use in CNC machining centers, drill presses, and manual lathes where small-bore precision reaming is required. The straight-cylindrical shank seats securely in standard drill chucks and collet holders, making it straightforward to integrate into existing setups. With an overall length of 2.25 inches and a flute length of 0.5900 inches, it is optimized for shallow to moderate reaming depths in small-diameter bores in the 0.0500 to 0.0999 inch diameter range. It does not include coolant-through capability and is not configured as a dowel pin or over/under size reamer.

Key Features

• Solid carbide construction for rigidity and wear resistance in precision reaming
• 6-flute, left-hand spiral geometry promotes smooth chip flow and improved bore finish
• Right-hand cutting direction compatible with standard machine spindle rotation
• Diameter tolerance of 0.0002 inches supports tight-fit bore requirements
• Bright, uncoated finish suitable for a broad range of workpiece materials
• Straight-cylindrical shank fits standard drill chucks and collet holders

Compatibility

Designed as a direct-fit chucking reamer for machines accepting a straight-cylindrical shank tool in the 0.0949 inch diameter class, consistent with Series 8600 tooling specifications.

Installation Notes

Chucking reamers should be installed by qualified machinists following standard toolroom practices. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Secure the shank fully in the collet or chuck to the recommended engagement depth to prevent runout. Apply appropriate cutting fluid for the workpiece material to extend tool life and maintain bore finish quality.
