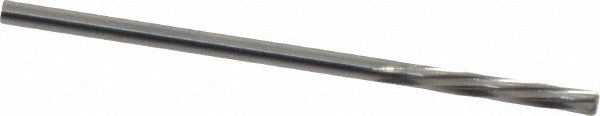

Magafor 88860002360 Chucking Reamer 0.0929 in Solid Carbide

Product Description

The MAGAFOR 88860002360 is a solid carbide chucking reamer designed for precise hole finishing in tight-tolerance machining applications. Built with 4 flutes and a left-hand spiral flute geometry, it cuts in a right-hand direction to produce accurate, smooth bores. The reamer measures 0.0929 inches (2.36 mm) in diameter with a bright polished finish and holds a diameter tolerance of 0.0000 to +0.0003 mm. A straight shank allows it to seat directly in standard drill chucks or collet holders. Machinists and tool-room technicians use this reamer for final sizing of small-diameter holes where dimensional accuracy is critical.

This reamer is suited for small-diameter finish reaming operations in production and tool-room environments. Its compact 1-31/32 inch overall length and 7/16 inch flute length make it appropriate for shallow-to-moderate depth holes in ferrous and non-ferrous materials. The solid carbide construction handles harder workpiece materials and maintains cutting-edge integrity longer than high-speed steel alternatives. It is a standard choice when hole tolerances require finishing beyond what a drill alone can achieve.

Key Features

• Solid carbide construction for extended edge life in hard and abrasive materials
• 4-flute left-hand spiral geometry with right-hand cutting direction for smooth chip flow
• Bright polished finish reduces friction and aids chip evacuation
• Diameter tolerance of 0.0000 to +0.0003 mm for tight-tolerance bore finishing
• Straight shank for direct mounting in standard chucks and collet holders
• Compact overall length of 1-31/32 inches suits shallow bore applications

Compatibility

Designed as an OEM-style chucking reamer for use in standard drill chucks, ER collet holders, and precision collet chucks accepting straight-shank tooling in the 0.0929 inch diameter range.

Installation Notes

Chucking reamers are installed and operated by machinists following standard machine-tool safety procedures. Ensure the machine spindle is fully stopped and the tool holder is secure before mounting or removing the reamer. Use appropriate cutting fluid for the workpiece material to extend tool life and improve surface finish. Do not use a reamer to remove excessive stock - pre-drill or bore the hole to within the recommended stock allowance before reaming.
