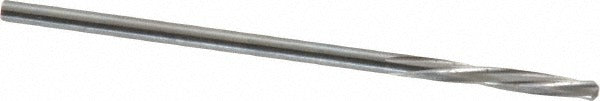

Magafor 88860001530 Chucking Reamer 0.0602 in Carbide

Product Description

The MAGAFOR 88860001530 is a solid carbide chucking reamer designed for precision hole finishing in tight-tolerance machining applications. With a cutting diameter of 0.0602 inches (1.53 mm) and a diameter tolerance of 0.0000 to +0.0003 mm, this reamer delivers the dimensional accuracy demanded in production and toolroom environments. The four-flute, right-hand cutting geometry paired with a left-hand spiral flute provides smooth chip evacuation and a clean bore finish. Machinists, tool and die makers, and CNC operators use this style of reamer to bring drilled or bored holes to final size with consistent, repeatable results.

This reamer is suited for small-diameter precision reaming in metalworking operations including mold making, aerospace component machining, medical device manufacturing, and general precision machining. The straight shank mounts directly in a drill chuck, collet chuck, or floating reamer holder on a drill press, machining center, or lathe. Its compact overall length of 1-9/16 inches makes it practical for short-reach applications where a longer tool would introduce runout or deflection concerns. The bright polished coating keeps friction low and supports clean surface finishes in ferrous and non-ferrous materials.

Key Features

• Solid carbide construction for rigidity and wear resistance in abrasive or hard materials
• 0.0602 inch (1.53 mm) cutting diameter with a tolerance of 0.0000 to +0.0003 mm for precision fitment
• Four flutes with left-hand spiral for efficient chip evacuation during right-hand cutting
• Bright polished finish reduces friction and promotes clean bore surface finish
• Straight shank compatible with standard drill chucks and collet systems
• Compact 1-9/16 inch overall length suited to short-reach reaming setups

Compatibility

Designed as an OEM-style solid carbide chucking reamer for use in standard straight-shank toolholders, collet chucks, and floating reamer holders on CNC machining centers, drill presses, and lathes requiring a 0.0602 inch finished bore diameter.

Installation Notes

Chucking reamers of this size should be installed by a qualified machinist using a collet or floating holder to minimize runout and protect the cutting edges. Ensure the workpiece is securely fixtured and the spindle is at the correct RPM and feed rate for the material being reamed before engaging the tool. Always allow the reamer to complete its pass before reversing direction, and never rotate the tool in reverse while it is engaged in the bore. Handle solid carbide tooling with care to avoid chipping the flutes during setup and storage.
