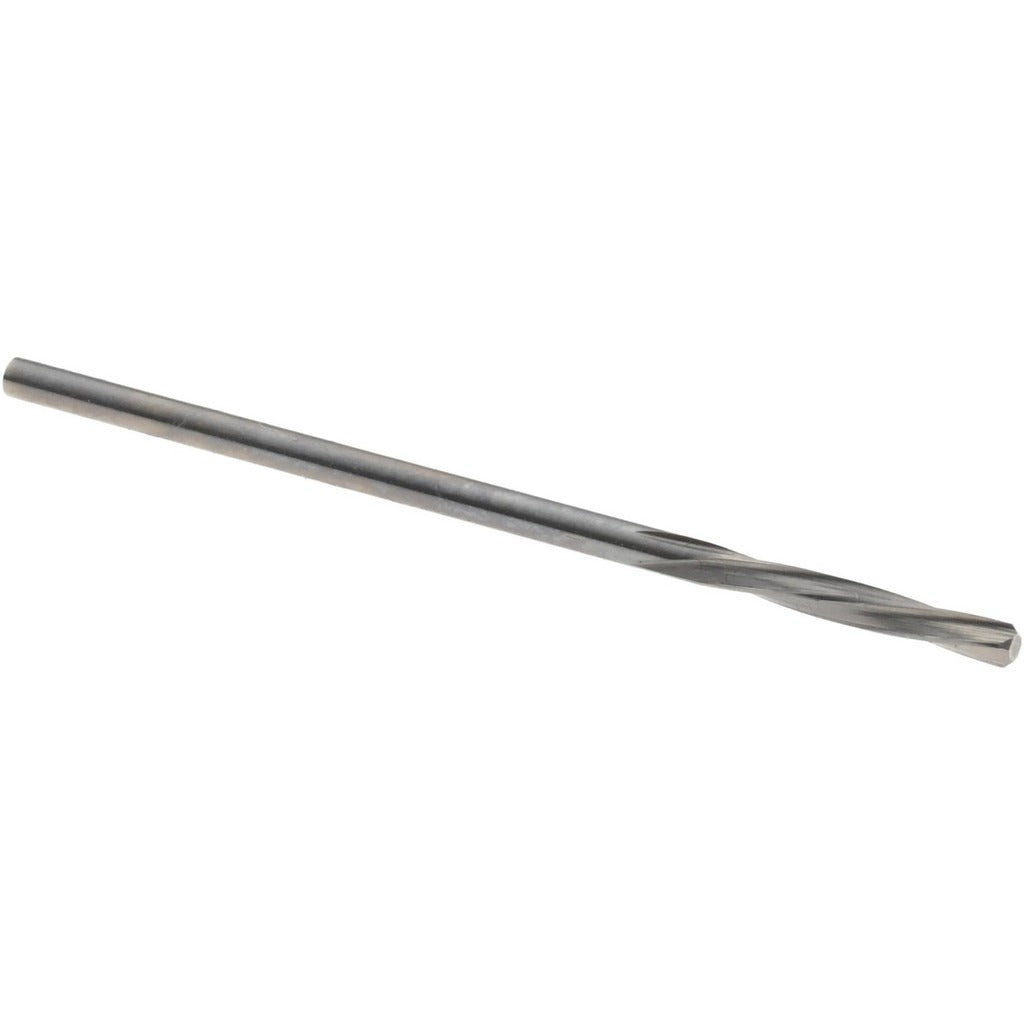

Magafor 88860001520 Chucking Reamer 0.0598 in Solid Carbide

Product Description

The MAGAFOR 88860001520 is a solid carbide chucking reamer designed for precision hole finishing in tight-tolerance machining applications. Built to Series 8600 standards, it features a 0.0598-inch diameter with a reamer diameter tolerance of 0.0002 inches, making it suitable for work requiring exact bore sizing. The straight-cylindrical shank allows direct chucking in collets or drill chucks on manual and CNC machines. With 4 flutes and a left-hand spiral flute geometry combined with right-hand cutting direction, the tool promotes smooth chip evacuation and consistent surface finish. It arrives in a bright, uncoated finish and is sized for small-diameter bore work.

This reamer is intended for use in precision machining environments where small-diameter holes require finishing to close tolerances. The 0.0598-inch diameter places it in the 1.00 to 2.00 mm range, making it common in instrument, medical device, aerospace, and small mechanical component manufacturing. It is typically run on CNC machining centers, manual mills, or drill presses where a collet or drill chuck provides secure shank retention. Machinists and toolroom technicians are the primary users.

Key Features

• Solid carbide construction for rigidity and wear resistance in small-diameter reaming
• 0.0002-inch diameter tolerance for tight-tolerance bore finishing
• Left-hand spiral flutes with right-hand cutting direction for smooth chip flow
• Straight-cylindrical shank for direct collet or drill chuck mounting
• 4-flute design provides balanced cutting action and improved surface finish
• Bright, uncoated finish - suitable for use with a wide range of cutting fluids

Compatibility

Designed as an OEM-style chucking reamer for use in standard collet chucks and drill chucks that accept straight-cylindrical shanks in the applicable diameter range.

Installation Notes

Installation and use should be performed by a qualified machinist or toolroom technician. Ensure the machine spindle and chuck are fully stopped before loading or removing the reamer. Secure the straight-cylindrical shank firmly in a collet or drill chuck to the appropriate clamping specification for the holder in use. Use appropriate cutting fluid for the workpiece material to maximize tool life and bore quality.
