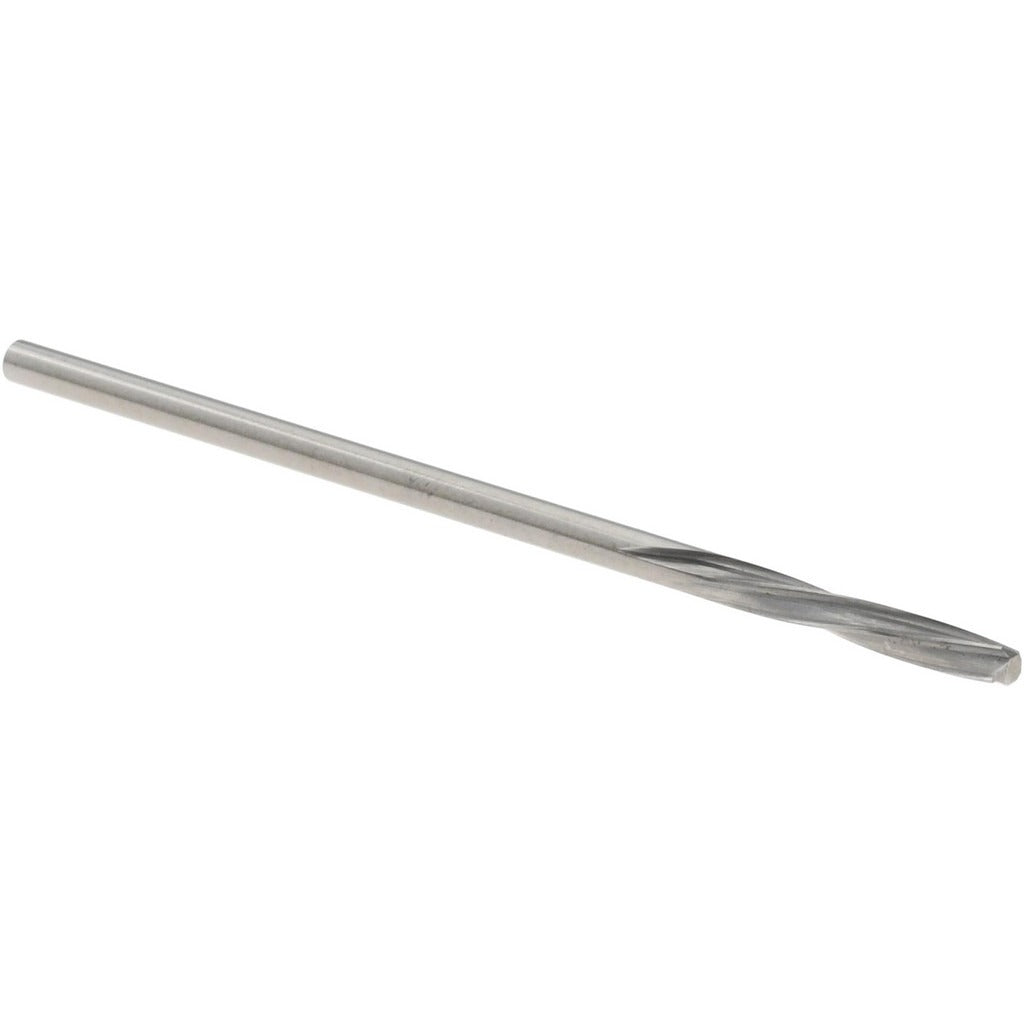

Magafor 88860001510 Chucking Reamer Size 53 Solid Carbide

Product Description

The MAGAFOR 88860001510 is a solid carbide chucking reamer designed for precision hole finishing in metalworking and machining applications. Sized to wire gauge #53 with a decimal diameter of 0.0594 inches and a diameter tolerance of plus or minus 0.0002 inches, this reamer delivers tight, repeatable bore geometry in a single pass. The 4-flute left-hand spiral configuration provides smooth chip evacuation and reduced chatter during right-hand cutting operation. The straight-cylindrical shank seats directly in a standard chuck or collet without adapter hardware. Licensed machinists and toolroom technicians are the primary users.

This reamer fits production and job-shop environments where small-diameter bore accuracy is critical. Typical applications include finish-reaming pre-drilled holes in ferrous and non-ferrous metals, plastics, and composites where a close tolerance fit is required. The bright, uncoated carbide surface is suited to dry cutting or light lubrication setups. At 1.58 inches overall length with a 25/64-inch flute length, it is sized for shallow-to-moderate depth holes in fixtures, components, and precision assemblies. It carries the MAGAFOR Series 8600 designation.

Key Features

• Wire gauge size #53 with 0.0594 inch decimal diameter and plus or minus 0.0002 inch tolerance
• Solid carbide construction for wear resistance and dimensional stability
• 4-flute left-hand spiral geometry promotes smooth chip flow during right-hand cutting
• Straight-cylindrical shank for direct chuck or collet mounting
• Bright, uncoated finish compatible with dry cutting and light-lubricant applications
• No coolant-through requirement simplifies setup on standard spindles

Compatibility

Designed as a direct-fit chucking reamer for standard straight-bore chucks and collet holders accepting a straight-cylindrical shank in the applicable diameter range.

Installation Notes

Installation and operation should be performed by a qualified machinist following standard shop safety procedures. Ensure the spindle is fully stopped and the machine is locked out before changing or inspecting the reamer. Seat the shank fully in the chuck or collet and verify runout with a dial indicator before taking a finishing pass. Do not exceed the manufacturer-recommended feed and speed range for the workpiece material and reamer diameter.
