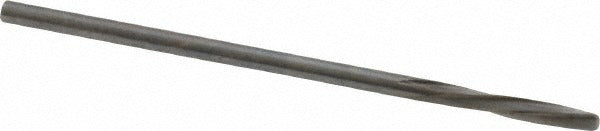

Magafor 88860001500 Chucking Reamer 0.059 in Carbide

Product Description

The MAGAFOR 88860001500 is a solid carbide chucking reamer designed for precision hole finishing in tight-tolerance machining applications. With a reamer diameter of 0.059 inches (1.50 mm) and a diameter tolerance of 0.0000 to +0.0003 mm, this tool delivers the dimensional accuracy required in production and toolroom environments. The bright polished coating reduces friction and aids chip evacuation. The straight shank seats securely in standard drill chucks or collet holders. Machinists and tool and die technicians are the primary users of this reamer in CNC and manual machine tool setups.

This reamer is suited for enlarging and finishing small-diameter through holes and blind holes in ferrous and non-ferrous materials where tight bore tolerances are required. The 4-flute spiral configuration with left-hand spiral and right-hand cutting direction provides smooth cutting action and helps push chips away from the finished surface. With an overall length of 1-9/16 inches and a flute length of 25/64 inches, this tool is sized for compact workpieces and short-reach applications in precision machining operations.

Key Features

• Solid carbide construction for superior wear resistance and dimensional stability
• 0.059 inch (1.50 mm) diameter with tolerance of 0.0000 to +0.0003 mm for tight-tolerance finishing
• 4-flute left-hand spiral, right-hand cutting geometry for smooth chip control
• Bright polished finish reduces friction and aids surface finish quality
• Straight shank compatible with standard drill chucks and collet holders
• Compact 1-9/16 inch overall length suited for short-reach bore applications

Compatibility

Designed as an OEM-style precision chucking reamer for use in standard drill chucks and collet-style tool holders on CNC machining centers, drill presses, and manual lathes accepting straight-shank tooling in the applicable diameter range.

Installation Notes

Installation and use should be performed by a qualified machinist. Secure the straight shank fully in a drill chuck or collet holder, ensuring proper runout before use. Machine spindle speed and feed rate should be set according to the workpiece material and tool diameter; consult carbide tooling guidelines for recommended cutting parameters. Never use excessive force to seat the reamer, as solid carbide tooling is brittle and susceptible to chipping under lateral loading.
