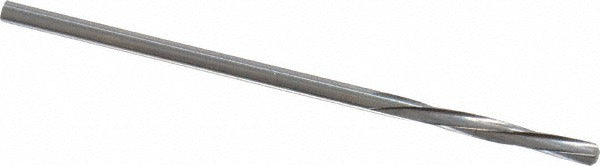

Magafor 88860001470 Carbide Chucking Reamer 0.0579 in

Product Description

The MAGAFOR 88860001470 is a solid carbide chucking reamer designed for precision hole finishing in tight-tolerance machining applications. Built from solid carbide with a bright polished finish, this reamer measures 0.0579 inches in diameter and holds a diameter tolerance of 0.0000 to +0.0003 mm, making it suitable where bore accuracy is critical. The 4-flute, right-hand cutting geometry with left-hand spiral fluting provides smooth chip evacuation and stable cutting action. At 1-9/16 inches overall length with a 25/64-inch flute length and straight shank, it fits standard drill chucks and collet systems used in CNC machining centers and manual lathes.

This reamer is intended for finishing pre-drilled or bored holes to a precise final diameter in metalworking environments. The 0.0579-inch diameter corresponds to 1.47 mm, placing it in the small-bore range commonly encountered in precision fixture work, instrument manufacturing, tooling plates, and close-tolerance production machining. The straight shank allows direct mounting in collets, drill chucks, or floating reamer holders. Licensed machinists and tool-and-die professionals working with high-speed steel or carbide-tooled setups will find this reamer appropriate for ferrous and non-ferrous materials alike.

Key Features

• Solid carbide construction for rigidity and wear resistance in precision boring applications
• 0.0579-inch (1.47 mm) cutting diameter with tolerance of 0.0000 to +0.0003 mm
• 4-flute, right-hand cutting with left-hand spiral for controlled chip flow
• Bright polished finish reduces friction and aids chip evacuation
• Straight shank for compatibility with standard collets and drill chucks
• Compact 1-9/16-inch OAL suited to shallow-bore and confined-clearance setups

Compatibility

Designed as an OEM-style precision reamer for use in CNC machining centers, manual mills, and lathes equipped with standard straight-shank collet or drill chuck toolholding systems accepting the applicable shank diameter.

Installation Notes

Installation and use should be performed by qualified machinists familiar with reaming procedures and machine tool operation. Ensure the machine spindle and workpiece are secure and that the pre-drilled or bored hole is sized appropriately undersize before reaming to achieve the specified tolerance. Use appropriate cutting fluid for the workpiece material to extend tool life and maintain finish quality. Do not force the reamer through an undersized hole or use it to remove excessive stock.
