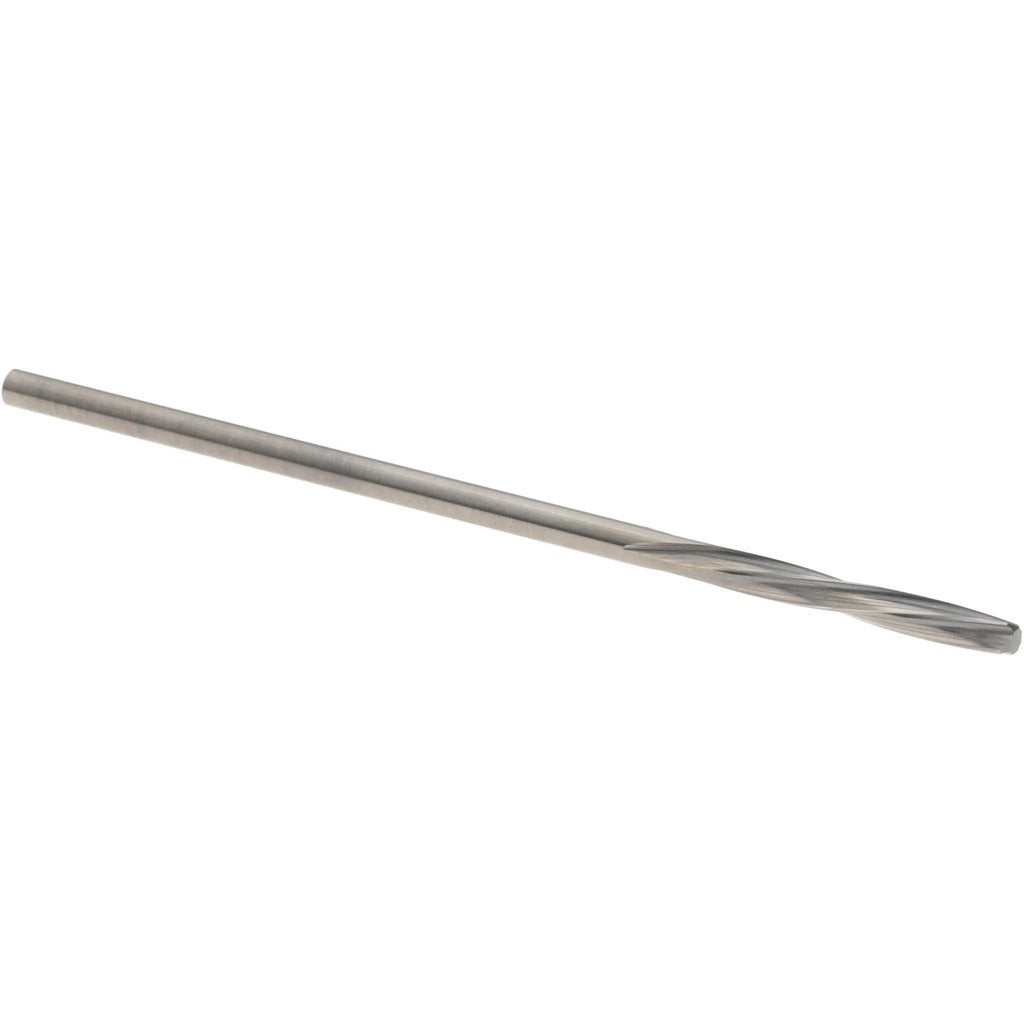

Magafor 88860001400 Chucking Reamer Size 54 Solid Carbide

Product Description

The MAGAFOR 88860001400 is a solid carbide chucking reamer in wire gauge size 54, designed to finish-ream precision holes to a nominal diameter of 0.0551 inches with a tolerance of plus or minus 0.0002 inches. Built to Series 8600 standards, it features a 4-flute left-hand spiral geometry with right-hand cutting direction, a bright uncoated finish, and a straight-cylindrical shank for secure chuck mounting. The overall length is 1.58 inches with a flute length of approximately 0.39 inches. Machinists and tool-and-die professionals use this reamer in CNC machining centers, drill presses, and manual lathes where tight bore tolerances are required on small-diameter holes.

This reamer is suited for finishing operations in small-diameter bores in the 0.0500 to 0.0999 inch range. Typical applications include precision hole finishing in ferrous and non-ferrous workpieces where surface finish and dimensional accuracy are critical. The solid carbide construction makes it appropriate for harder materials and high-production runs where high-speed steel tooling would wear prematurely. It does not feature coolant-through capability and is not configured as a dowel pin or over/under size reamer.

Key Features

• Solid carbide construction for extended tool life in hard and abrasive materials
• 4-flute left-hand spiral geometry with right-hand cutting direction for smooth chip evacuation
• Reamer diameter tolerance of 0.0002 inches for tight bore accuracy
• Bright uncoated finish suitable for a wide range of workpiece materials
• Straight-cylindrical shank for direct chuck mounting without adapters
• Series 8600 design with no coolant-through requirement, simplifying setup

Compatibility

Designed as an OEM-style precision chucking reamer for use in standard straight-shank chuck toolholders accommodating the straight-cylindrical shank profile of this Series 8600 tool.

Installation Notes

Installation and use should be performed by a qualified machinist following standard machine shop practices. Secure the straight-cylindrical shank firmly in a collet or drill chuck rated for the spindle speed appropriate to the workpiece material and reamer diameter. Always bring the spindle to a full stop before loading or removing the tool. Follow applicable shop safety protocols and manufacturer speed-and-feed guidelines for carbide tooling on the specific workpiece material.
