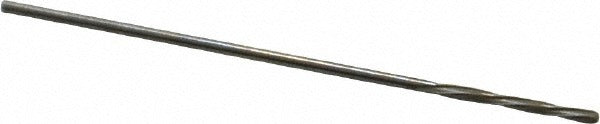

Magafor 88860000750 Chucking Reamer 0.0295 in Carbide

Product Description

The MAGAFOR 88860000750 is a solid carbide chucking reamer designed for precision hole finishing in tight-tolerance machining applications. With a reamer diameter of 0.0295 inches (0.75 mm) and a bright polished finish, this tool is built for accurate final-pass sizing in small-bore work. The 4-flute geometry with left-hand spiral and right-hand cutting direction provides smooth chip evacuation and consistent surface finish. Overall length is 1-5/16 inches with a 9/32-inch flute length. Machinists and tool-and-die professionals use this reamer in CNC machining centers, drill presses, and manual lathes where hole diameter consistency is critical.

This reamer is suited for small-diameter precision work in metalworking environments including production machining, mold and die, aerospace component finishing, and instrumentation manufacturing. The straight shank design allows it to be held in standard collets and drill chucks. The 0.0295-inch diameter falls in the micro-reamer range, making it particularly applicable where close-tolerance bores in hard materials require a rigid, non-deflecting cutting tool. The solid carbide construction resists wear at higher cutting speeds compared to HSS alternatives.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard materials
• 0.0295-inch (0.75 mm) diameter with a tolerance of 0.0000 to +0.0003 mm for precision bore sizing
• 4-flute left-hand spiral geometry with right-hand cutting direction for smooth chip flow
• Bright polished (uncoated) finish reduces built-up edge in non-ferrous and ferrous applications
• Straight shank fits standard collets and drill chucks without special toolholding
• 9/32-inch flute length suited for shallow to moderate depth bores in the micro-diameter range

Compatibility

Designed as an OEM-style precision chucking reamer for use in standard straight-shank collets and drill chucks on CNC machining centers, knee mills, and drill presses capable of holding micro-diameter tooling.

Installation Notes

This reamer is installed by qualified machinists familiar with micro-diameter tooling practices. Ensure the spindle and toolholder are free of runout before chucking, as even minor eccentricity will cause oversize bores or tool breakage at this diameter. Always pre-drill or bore the hole close to final size before reaming. Use appropriate cutting fluid for the workpiece material and follow machine shop safety protocols when handling carbide tools.
