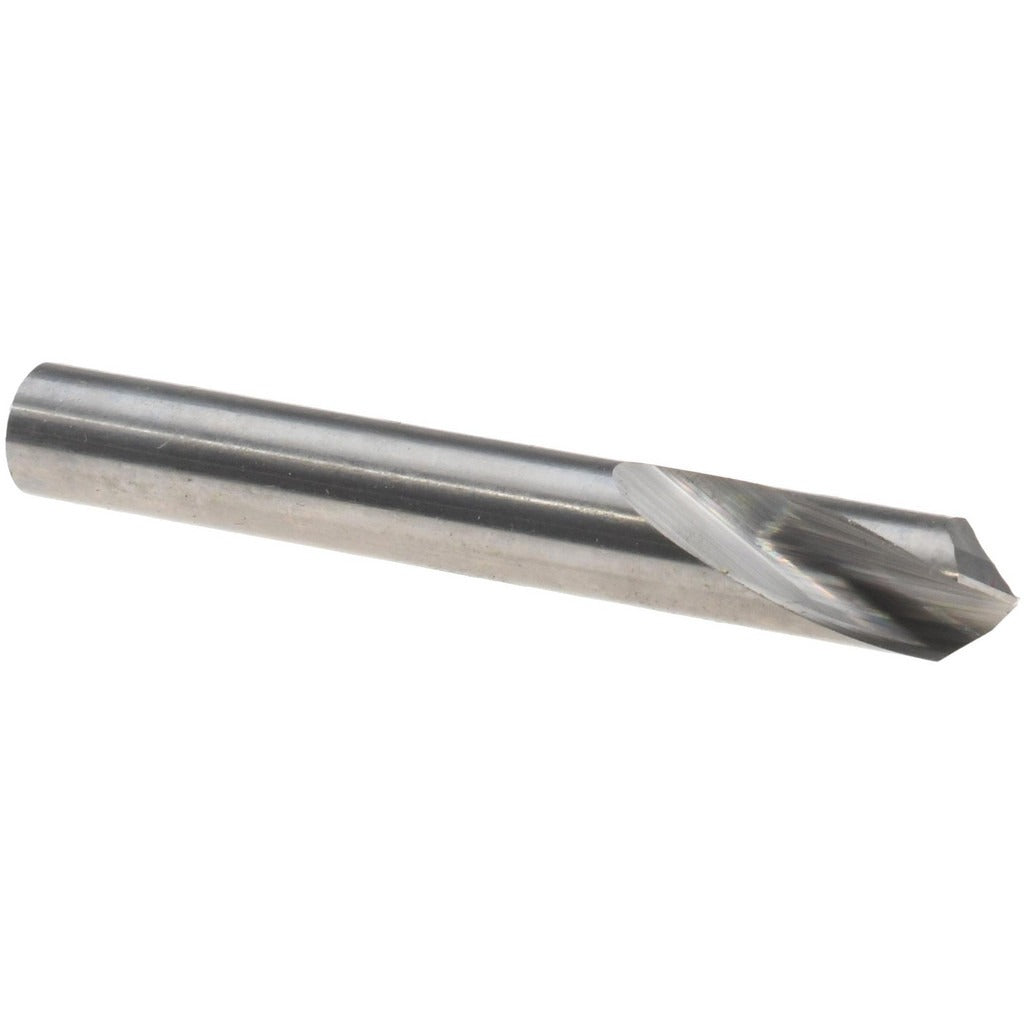

Magafor 88819606350 Spotting Drill 1/4 in 120 Deg Carbide

Product Description

The MAGAFOR 88819606350 is a solid carbide spotting drill designed to create precise starter points for follow-on drilling operations. Built to Series 8196 standards, it features a 120-degree point angle and a 0.250-inch cutting diameter, making it well suited for accurate hole location on ferrous and non-ferrous metals. The bright, uncoated finish and K15 carbide grade deliver consistent performance in general-purpose machining environments. At 2 inches overall length with a 0.700-inch spiral flute, this tool is compact enough for tight setups. Machinists, toolroom technicians, and CNC operators install this type of drill in machining centers, drill presses, and manual mills.

The 88819606350 is intended for general-purpose spotting applications in job shop, production, and maintenance machining environments. The single-ended, straight cylindrical shank at 0.250 inches accepts standard drill chucks and collet holders without additional adapters. Right-hand cutting direction aligns with conventional spindle rotation on standard machine tools. Web thinning reduces thrust load at the cutting edge, which helps maintain drill position accuracy at the spot location before the primary drill engages.

Key Features

• 120-degree point angle provides a clean, accurate spotting cone for follow-on twist drills
• Solid carbide construction in K15 grade for rigidity and wear resistance in general-purpose cutting
• Bright, uncoated finish compatible with a wide range of cutting fluids and workpiece materials
• Two-flute spiral design with web thinning reduces axial thrust and improves centering accuracy
• Straight cylindrical shank seats directly in standard drill chucks and ER collet systems
• Single-ended tool; full 0.700-inch flute length available for spotting depth control

Compatibility

Designed as a general-purpose spotting drill for use in machining centers, CNC drilling stations, and manual drill presses that accept 1/4-inch straight-shank tooling.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Secure the straight shank in a properly sized collet or drill chuck and verify runout before cutting. Power down and de-energize the machine spindle before loading or removing the tool. Consult applicable shop safety standards and machine manufacturer guidelines for maximum spindle speed and feed rate for the workpiece material.
