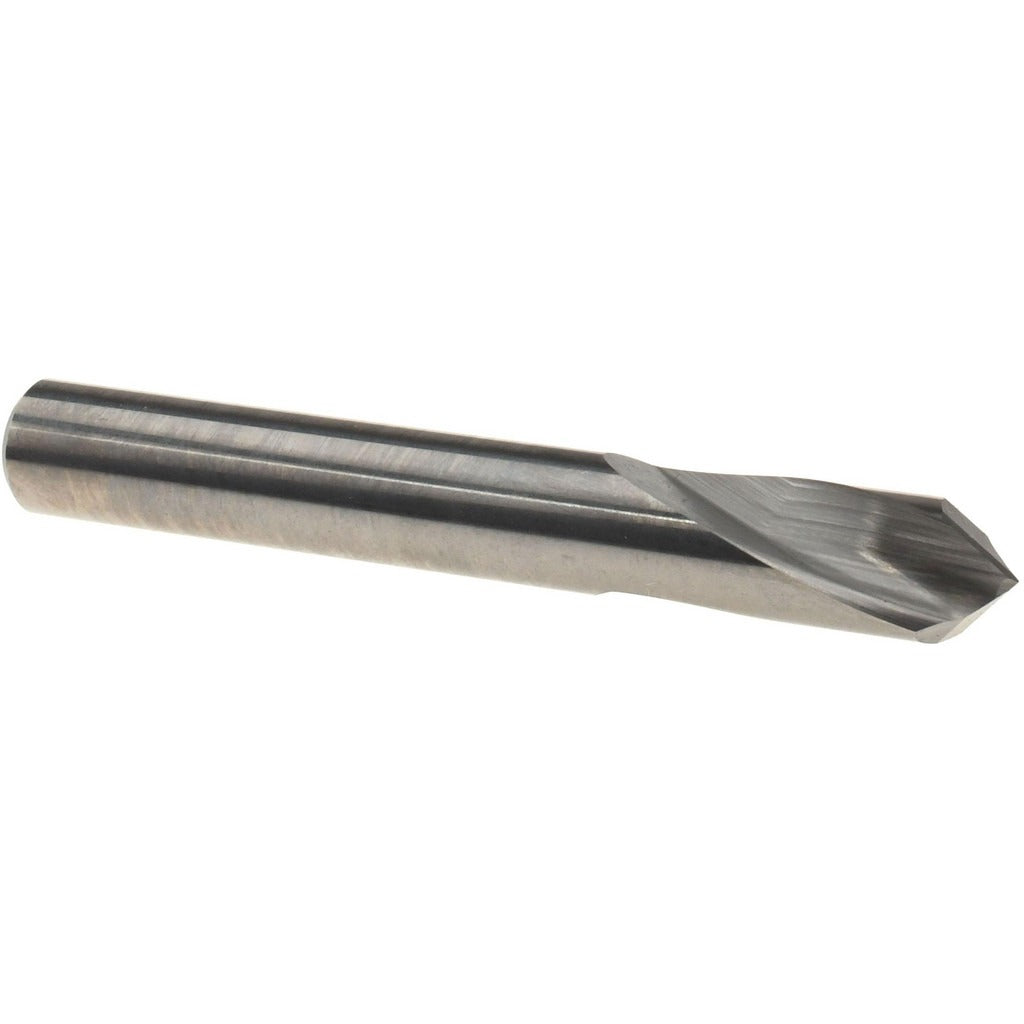

Magafor 88819506350 Spotting Drill 90 Deg 1/4 in Carbide

Product Description

The MAGAFOR 88819506350 is a solid carbide spotting drill designed to create accurate center points and precise entry angles for follow-on drilling operations. Built to Series 8195 standards, it features a 90-degree point angle and a 0.25-inch cutting diameter with a matching 0.25-inch straight cylindrical shank. The bright, uncoated K15 carbide grade delivers consistent performance across general-purpose spotting applications. At 2 inches overall length with a 0.75-inch spiral flute, this single-ended tool is sized for compact setups and short-reach fixturing. The web-thinned geometry reduces thrust and improves centering accuracy at drill entry.

This spotting drill is suited for machine shops, job shops, and production environments where accurate hole location is required before full-diameter drilling. Right-hand cut with two spiral flutes, it runs in standard CNC machining centers, knee mills, and drill presses. Typical use cases include spotting pilot locations on steel, aluminum, and other machinable metals in both prototype and production runs. The straight cylindrical shank accepts standard drill chucks and collet holders with 1/4-inch bore capacity.

Key Features

• 90-degree point angle for accurate spotting and drill entry alignment
• Solid carbide K15 grade construction for rigidity and wear resistance
• Web-thinned geometry reduces axial thrust and improves centering
• Two spiral flutes with right-hand cut for standard spindle rotation
• Bright, uncoated finish compatible with a wide range of cutting fluids
• Straight cylindrical shank fits standard collets and drill chucks

Compatibility

Designed as a general-purpose spotting drill for use in CNC machining centers, knee mills, and drill presses equipped with 1/4-inch collet or chuck capacity.

Installation Notes

Installation and operation of this tool should be performed by a qualified machinist or CNC setup technician. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before loading or changing tooling. Secure the shank fully within the collet or chuck to the recommended grip depth before running. Follow the machine manufacturer and tooling guidelines for appropriate speeds and feeds for the workpiece material.
