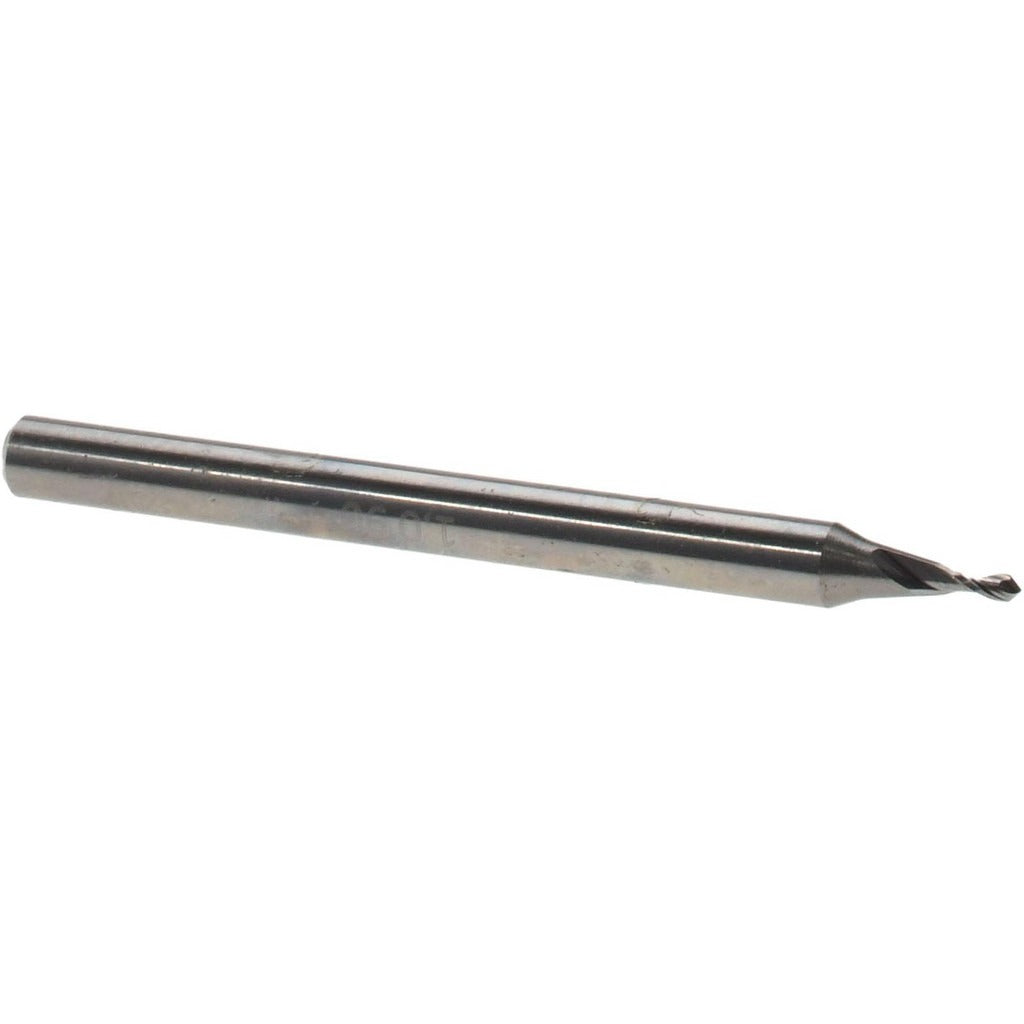

Magafor 88809001000 Spotting Drill 1mm 90 Degree Solid Carbide

Product Description

The MAGAFOR 88809001000 is a solid carbide spotting drill designed to create precise starter holes for follow-on drilling operations. Built to Series 8090 specifications, this single-ended tool features a 90-degree point angle and a 1 mm cutting diameter, making it well suited for accurately locating drill entry points on metal workpieces. The bright, uncoated finish and K15 carbide grade support general-purpose machining across a range of ferrous and non-ferrous materials. Right-hand cut geometry and a web-thinned tip reduce thrust load and improve centering accuracy at the start of a cut.

This spotting drill is intended for use in CNC machining centers, drill presses, and manual mills where consistent hole location is required before reaming, tapping, or deep-hole drilling. The 3 mm straight cylindrical shank fits standard collet chucks and tool holders common in precision machine shops. With a 1.5-inch overall length and a 0.0625-inch flute length, this tool is suited for shallow spotting applications in tight setups or fixture work where clearance is limited. It is installed and operated by machinists and CNC tooling technicians working to close positional tolerances.

Key Features

• 90-degree point angle for accurate hole location and reduced walking
• 1 mm cutting diameter with 0.0394-inch decimal equivalent
• Solid carbide K15 grade for rigidity and wear resistance in general-purpose machining
• Web-thinned tip reduces axial thrust and improves centering
• Spiral flute, two-flute design promotes chip clearance during spotting
• Bright, uncoated finish compatible with a wide range of cutting fluids and materials

Compatibility

Designed as a general-purpose spotting drill for use with standard 3 mm straight cylindrical collet chucks and tool holders in CNC and manual machining setups.

Installation Notes

Installation and operation should be performed by qualified machinists or CNC tooling technicians. Ensure the machine spindle is fully stopped and locked out before changing tooling. Seat the shank fully in the collet or chuck and verify runout with a dial indicator before beginning a cut. Use appropriate cutting fluid for the workpiece material and do not exceed the tool manufacturer's recommended spindle speeds for carbide spotting drills at this diameter.
