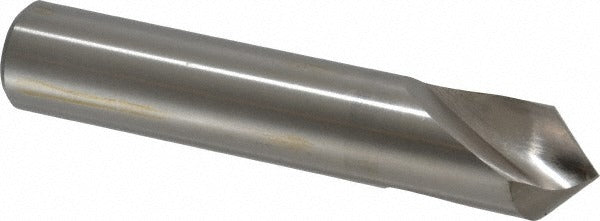

Magafor 81195254000 Cobalt Spotting Drill 1 in 90 Deg

Product Description

The MAGAFOR 81195254000 is a cobalt (HSS-E, M-35 grade) spotting drill designed to accurately locate and start holes before a full drill operation. Built to a 90-degree point angle with a 1-inch cutting diameter and a 5.375-inch overall length, this tool creates precise center spots that guide subsequent drilling and reduce wander in production and maintenance environments. The bright, uncoated finish is well-suited for general-purpose spotting in a wide range of workpiece materials. It is installed and used by machinists, tool-and-die workers, and maintenance technicians on manual and CNC machine tools.

This spotting drill fits standard machining applications where accurate hole location is required before twist drilling, countersinking, or boring. The 1-inch straight cylindrical shank seats directly into matching collets, drill chucks, or tool holders on vertical mills, lathes, and machining centers. The 1.75-inch spiral flute length provides adequate chip clearance for spotting depths typical in both job-shop and production settings. Series 195 is MAGAFOR's general-purpose spotting line, intended for everyday shop use across a broad range of ferrous and non-ferrous materials.

Key Features

• 90-degree point angle for standard spotting and center-drilling operations
• Cobalt M-35 (HSS-E) construction for improved heat and wear resistance over standard HSS
• 1-inch cutting diameter with a matching 1-inch straight cylindrical shank for rigid, concentric tool holding
• Web-thinned geometry reduces thrust load and improves centering accuracy
• Spiral flute design with 2 flutes promotes chip evacuation during spotting
• Bright, uncoated finish - no coating buildup to affect dimensional accuracy in tight-tolerance work

Compatibility

Designed as a general-purpose spotting drill compatible with standard 1-inch straight-shank tool holders, collet chucks, and drill chucks used on CNC machining centers, knee mills, and drill presses.

Installation Notes

Installation is performed by machinists or tooling technicians. Ensure the machine spindle is fully stopped and the tool-change mode is engaged before inserting or removing the drill from its holder. Seat the shank fully and evenly in the collet or chuck and torque the clamping device per the tool-holder manufacturer's specifications. Inspect the cutting edges and web for chips or wear before each use, as a damaged spotting drill can cause runout and inaccurate hole location downstream.
