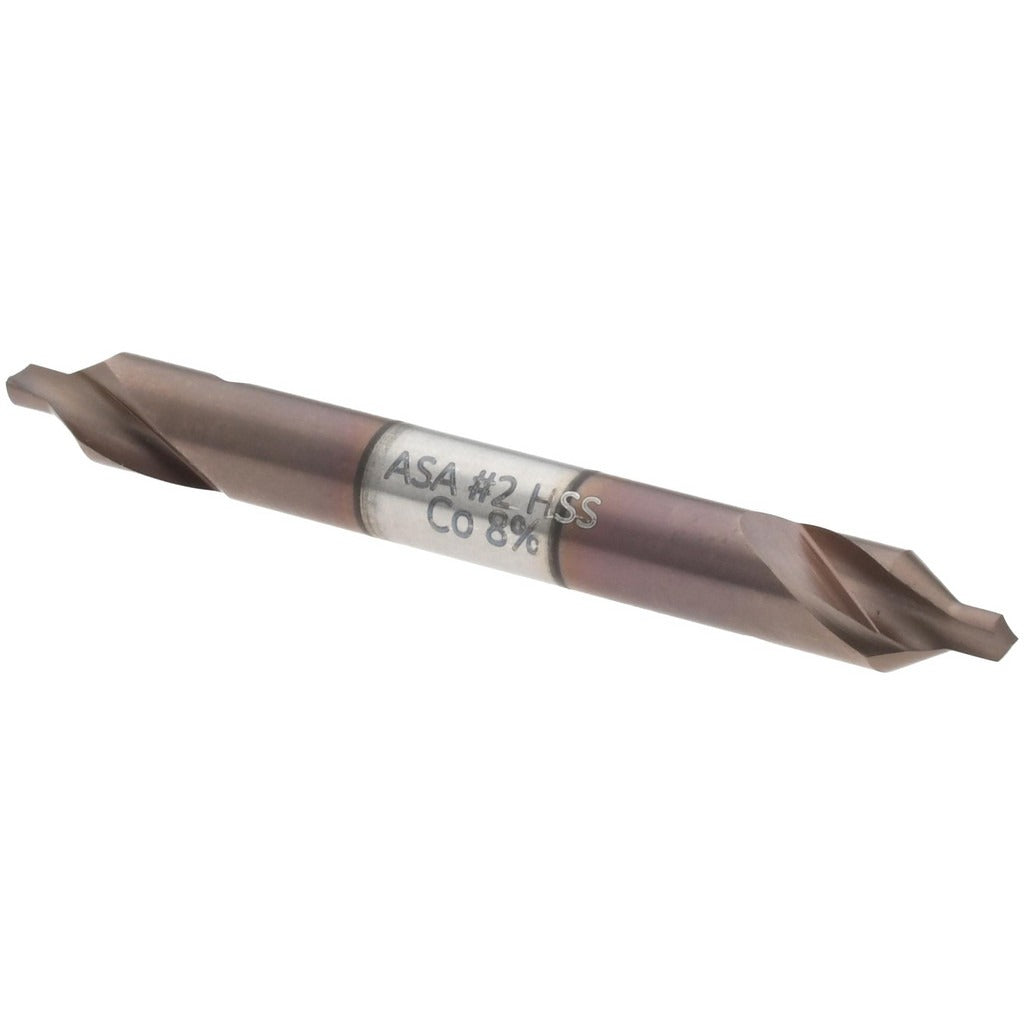

Magafor 80091502000 Combo Drill Countersink 3/16 in Cobalt

Product Description

The MAGAFOR 80091502000 is a combination drill and countersink tool designed to drill and chamfer in a single pass. It is manufactured from cobalt high-speed steel with a TiAlN coating, making it suited for harder workpiece materials where standard HSS tooling loses edge life prematurely. The tool carries a size 2 designation with a 3/16 inch body diameter and a 5/64 inch drill point diameter. Overall length is 1-7/8 inches. The 118-degree drill point angle and 60-degree included countersink angle are standard geometry for general metalworking operations. Installation and use are performed by machinists and tool-and-die professionals in shop environments.

This combo drill countersink is applied in drilling and countersinking operations on ferrous and non-ferrous metals in production and maintenance machining settings. The right-hand cutting direction suits standard CNC and manual drill press setups. The plain cutting edge style makes it compatible with standard collet and chuck workholding without requiring specialized toolholders. It is part of the MAGAFOR Series 0915 product line.

Key Features

• Cobalt construction for improved heat and wear resistance compared to standard HSS
• TiAlN coating extends tool life in harder and abrasive materials
• 118-degree drill point angle for general-purpose metalworking entry geometry
• 60-degree included countersink angle for standard machine screw countersink profiles
• Right-hand cut for use with conventional drill press and CNC spindle rotation
• Compact 1-7/8 inch overall length suited to tight-clearance applications

Compatibility

Designed as an OEM-style replacement or direct substitute for size 2 combo drill countersinks in Series 0915 configuration with a 3/16 inch body diameter and standard 60-degree countersink geometry.

Installation Notes

This tool is installed and operated by machinists using standard drill press, lathe, or CNC milling equipment. Secure the tool in a properly sized collet or drill chuck before operation and verify runout is within acceptable limits. Always power down and lock out the machine spindle before changing tooling. Cutting speeds and feeds should follow established guidelines for cobalt tooling on the specific workpiece material being machined.
