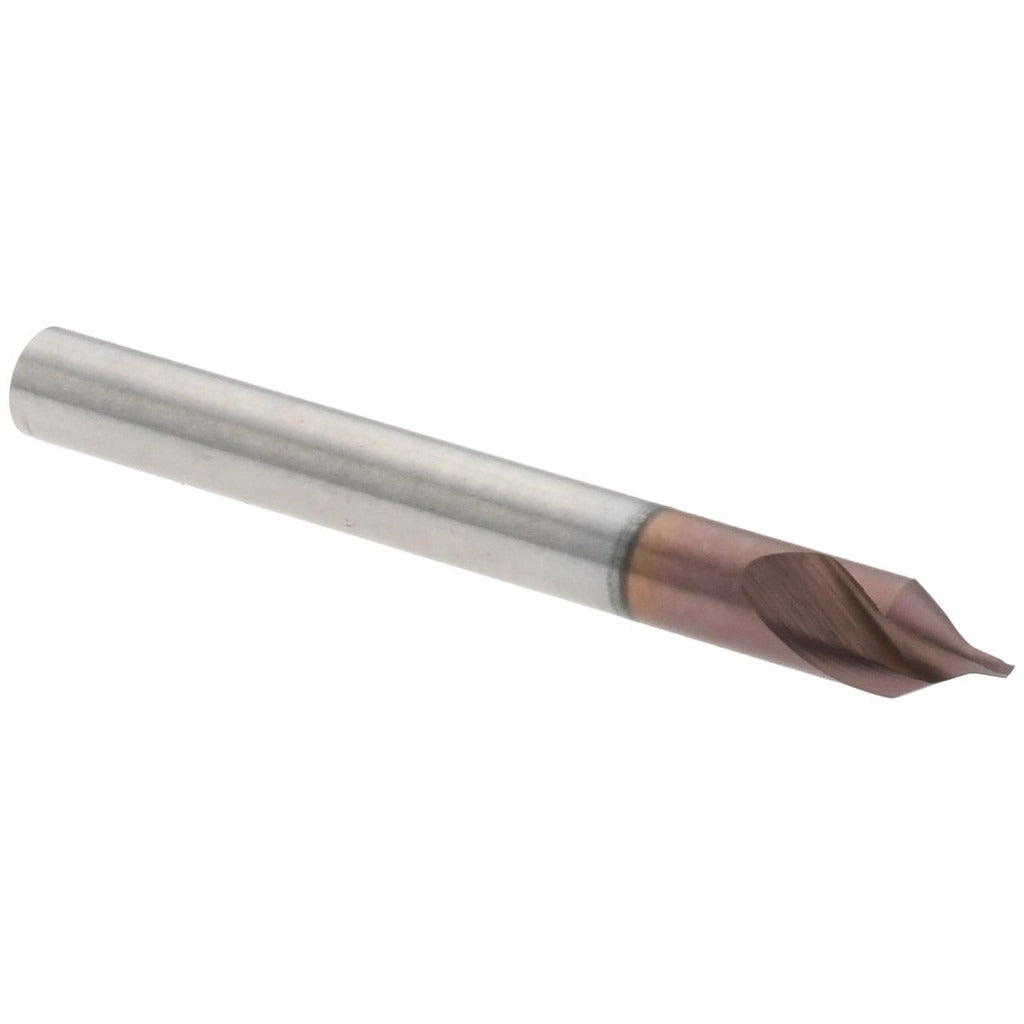

Magafor 80091500E00 Combo Drill Countersink Cobalt Tialn

Product Description

The MAGAFOR 80091500E00 is a combination drill and countersink designed to drill and chamfer in a single operation. Made from cobalt high-speed steel with a TiAlN coating, it delivers extended tool life in tough materials including stainless steel, hardened alloys, and cast iron. The body measures 0.125 inches in diameter with a drill point diameter of 0.03125 inches. Overall length is 1.25 inches. The 118-degree drill point angle and 60-degree included countersink angle are ground to standard tolerances. This tool is installed and used by machinists, tool and die makers, and maintenance technicians working in production or repair environments.

This combo drill countersink is suited for use in drill presses, CNC machining centers, and manual mills where combined drilling and countersinking operations are required in a single pass. Trade size 0 makes it appropriate for small-diameter fastener prep work in light metal fabrication, sheet metal, and precision part production. The single-end, plain cutting edge style suits standard through-hole and spot-facing applications on ferrous and non-ferrous workpieces.

Key Features

• Cobalt tool material provides heat and wear resistance in difficult-to-machine materials
• TiAlN coating extends tool life and reduces friction at the cutting edge
• 118-degree drill point angle suitable for general-purpose drilling on metal
• 60-degree included countersink angle matches standard fastener head geometry
• Right-hand cut for use with conventional spindle rotation
• Single-end design for straightforward tool holding and replacement

Compatibility

Designed as an OEM-style replacement or standard tooling option for trade size 0 combo drill countersink applications in Series 0915.

Installation Notes

This tool is installed by machinists and tooling technicians in compatible drill chucks or collet holders sized for a 0.125-inch body diameter. Ensure the spindle is fully stopped and the machine is locked out before changing tooling. Use appropriate cutting fluid or dry cutting conditions as specified for the workpiece material. Follow facility safety protocols and applicable machining standards when setting speeds and feeds.
