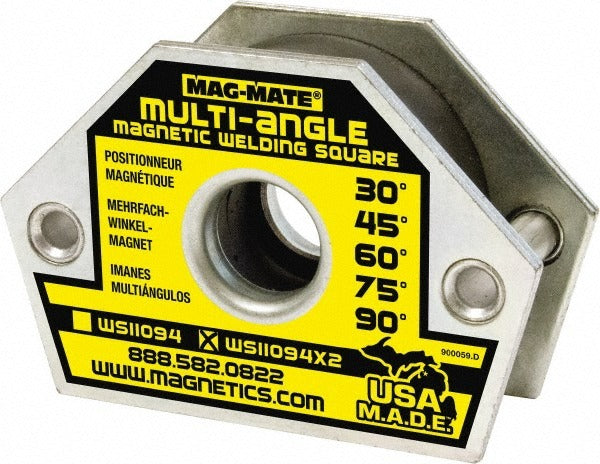

Mag-mate WS11094X2 Ceramic Magnetic Welding Square

Product Description

The MAG-MATE WS11094X2 is a ceramic magnetic welding fabrication square designed to hold workpieces at precise angles during welding, tacking, and metal fabrication work. Measuring 4-3/8 inches wide, 1-9/16 inches deep, and 3 inches high, it delivers an average pull force of 110 pounds, giving welders and fabricators a firm, reliable hold on steel and ferrous materials. The ceramic magnet construction provides consistent holding power without requiring any external power source. This tool is a standard fixture in metal fab shops, structural welding operations, and field welding setups where accurate angle positioning is critical.

The WS11094X2 is suited for use in both residential and commercial metal fabrication environments. It supports six fixed holding angles - 30, 45, 60, 75, 90, and 180 degrees - making it versatile across a wide range of joint configurations. Welders, ironworkers, and fabricators use this square to hold pipe, angle iron, flat stock, and structural members in position during tack welding and assembly. It works with MIG, TIG, and stick welding processes on ferrous materials.

Key Features

• Ceramic magnet construction provides 110 lb average pull force for consistent holding on ferrous metals
• Six preset holding angles: 30, 45, 60, 75, 90, and 180 degrees
• Compact form factor at 4-3/8 inches wide, 1-9/16 inches deep, and 3 inches high
• No external power required - passive magnetic hold stays active throughout the weld
• Compatible with MIG, TIG, and stick welding setups on steel and other ferrous workpieces

Compatibility

Designed for use with steel, iron, and other ferrous metal workpieces in welding and metal fabrication applications. Magnetic hold is not effective on non-ferrous materials such as aluminum, copper, or stainless steel with low iron content.

Installation Notes

Place the square firmly against the workpiece surfaces before tacking to allow the magnet to seat properly. Inspect the magnet faces for metal chips or debris before each use, as buildup can reduce holding force and compromise angle accuracy. Welding spatter can accumulate on the magnet surface over time - clean regularly with a wire brush or scraper. This tool does not require installation by a licensed trade; however, standard welding safety practices and applicable OSHA guidelines apply during use.
