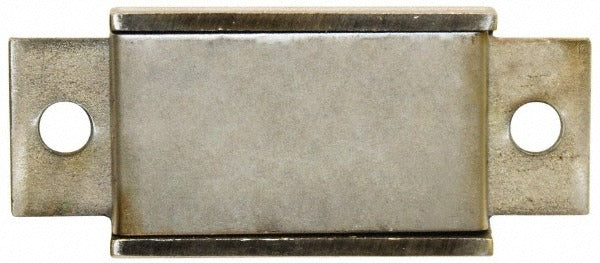

Mag-mate WH2100 Ceramic Fixture Magnet 31 Lb Pull Force

Product Description

The MAG-MATE WH2100 is a double wide ceramic fixture magnet designed for industrial and commercial mounting applications. Built with a stainless steel housing and a Grade 2 ceramic magnet core, this unit delivers a maximum pull force of 31 pounds while withstanding operating temperatures up to 300 degrees F. The compact form factor measures 2.75 inches long by 2.375 inches wide by 0.5625 inches thick, making it suitable for tight mounting spaces. It is installed by maintenance technicians, electricians, and mechanical contractors who need a reliable, semi-permanent magnetic fixture solution in demanding environments.

The WH2100 is suited for fixture mounting in industrial, commercial, and light manufacturing settings where a strong, heat-tolerant magnetic hold is required. Its double wide profile distributes holding force across a broader contact surface, improving stability on ferrous mounting surfaces. The 1/4-20 threaded mounting hole allows for straightforward mechanical fastening to standard hardware. This magnet is appropriate for use in environments with elevated ambient temperatures where standard magnet assemblies may underperform.

Key Features

• 31 lb maximum pull force for secure fixture mounting
• Grade 2 ceramic magnet core rated for high-temperature performance
• Stainless steel housing resists corrosion in harsh environments
• Maximum operating temperature of 300 degrees F
• Double wide fixture style for improved contact and stability
• 1/4-20 M6 mounting hole for standard mechanical fastening

Compatibility

Designed as an OEM-style replacement or direct-install ceramic fixture magnet for industrial and commercial mounting applications requiring a double wide form factor with a 1/4-20 threaded mounting hole.

Installation Notes

Installation is performed by qualified maintenance technicians or mechanical contractors. De-energize any associated electrical equipment and ensure the mounting surface is clean and free of debris before securing the magnet assembly. Use appropriate hardware for the 1/4-20 threaded mounting hole and verify the mounting surface is ferrous and capable of supporting the rated pull force. Avoid exceeding the 300 degrees F maximum operating temperature to prevent permanent demagnetization.
