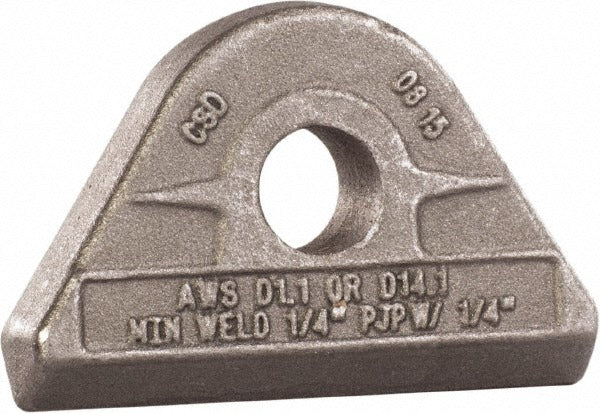

Mag-mate PE0200 Pad Eye 4000 Lb Carbon Steel

Product Description

The MAG-MATE PE0200 is a carbon steel pad eye rated for a 4,000 lb (2-ton) work load limit. Pad eyes are fixed lifting and rigging attachment points welded or bolted to structures, equipment, or fabrications to accept shackles, hooks, or wire rope. This unit features a 43/64 inch inner diameter opening sized to accept standard rigging hardware. At 0.8 pounds, it is compact and straightforward to install in overhead or side-mount rigging applications. Riggers, millwrights, ironworkers, and general contractors commonly specify pad eyes like this for lifting, lashing, and tie-down anchor points in industrial and construction settings.

The PE0200 is suited for use in light to medium industrial rigging, structural attachment, and load-securing applications. It functions as a fixed anchor point on steel frames, beams, equipment housings, and fabricated structures wherever a reliable 2-ton rated attachment is required. The 43/64 inch ID accommodates common shackle pins and rigging hook hardware used in everyday rigging tasks.

Key Features

• 4,000 lb (2-ton) work load limit for light to medium rigging tasks
• 43/64 inch inner diameter opening compatible with standard shackle and hook hardware
• Carbon steel construction for durability in demanding work environments
• Compact profile at approximately 3.25 inches wide and 2.13 inches tall
• 0.69 inch overall thickness suits surface-mount and weld-on installation
• Lightweight at 0.8 pounds for easy handling during installation

Compatibility

Designed as a standard fixed pad eye for use with rigging hardware sized to accept a 43/64 inch ID attachment point, including shackles and hooks rated to the 2-ton work load limit of this fitting.

Installation Notes

Pad eyes are typically installed by qualified riggers, ironworkers, or welders following applicable ASME B30 and OSHA rigging standards. Weld-on installations require full-penetration welds inspected per applicable structural welding codes; bolt-on installations must use fasteners rated to or above the pad eye work load limit. Always de-energize, de-load, and secure the structure before mounting. Never exceed the rated 4,000 lb work load limit and always inspect the pad eye and connected hardware for deformation or cracking before each use.
