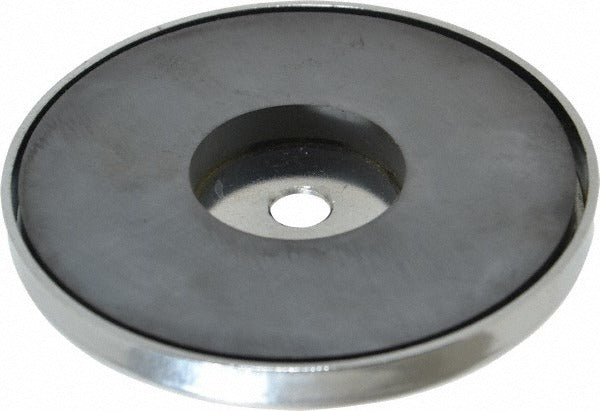

Mag-mate MX5000 Ceramic Cup Magnet 95 Lb Pull Force

Product Description

The MAG-MATE MX5000 is a ceramic cup magnet designed for industrial holding, mounting, and retrieval applications. The mild steel cup concentrates magnetic flux at the contact face, delivering a maximum pull force of 95 pounds from a compact 0.5 inch overall height. The through-hole style allows for bolt or screw fastening directly through the magnet body, making it easy to mount permanently or semi-permanently to fixtures, jigs, and workholding surfaces. A chrome-plated finish provides corrosion resistance in light-duty shop environments. Machinists, fabricators, maintenance technicians, and tool builders are the typical installers of this component.

This cup magnet is suited for use in light manufacturing, maintenance and repair operations, workholding fixtures, parts handling, and shop tool organization. The through-hole mounting style fits panel-mount and flush-mount setups where a threaded fastener is preferred over adhesive bonding. At 4.9 inches in diameter with a 1.75 inch magnet inside diameter, it provides a wide contact footprint for flat ferrous surfaces. It is packaged individually and is a standard off-the-shelf item for industrial supply and MRO procurement.

Key Features

• 95 pound maximum pull force for secure holding on flat ferrous surfaces
• Through-hole style allows direct bolt or screw fastening through the magnet body
• Mild steel cup concentrates magnetic flux at the contact face for maximum holding efficiency
• Chrome-plated finish for corrosion resistance in shop and light industrial environments
• Low-profile design at 0.5 inch overall height fits tight clearance mounting locations
• 4.9 inch overall diameter with 1.75 inch magnet inside diameter for broad contact coverage

Compatibility

Designed as a direct-mount ceramic cup magnet for use on flat ferrous surfaces in industrial, manufacturing, and MRO applications where a through-hole fastening style is required.

Installation Notes

Install using a bolt or screw through the center hole sized to the through-hole diameter; ensure the fastener does not protrude beyond the magnet face to avoid reducing contact area. Clean the mating ferrous surface before installation to maximize pull force. De-energize or remove any adjacent electrical or sensitive electronic equipment before placing high-strength magnets nearby. No specialized tools are required for standard through-hole mounting.
