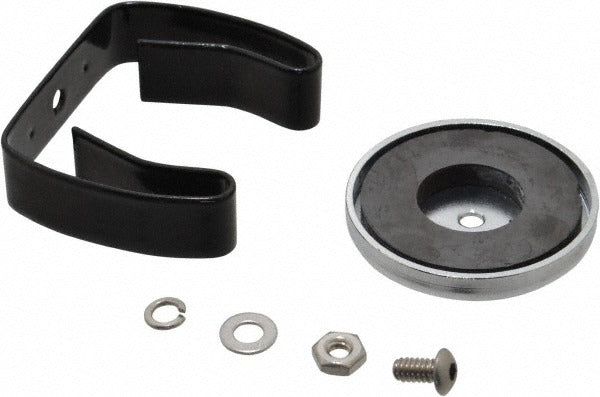

Mag-mate MX2000VB01 Ceramic Cup Magnet with Clamp

Product Description

The MAG-MATE MX2000VB01 is a ceramic cup magnet assembly with an integrated clamp, designed for securing and holding ferrous workpieces or mounting magnetic fixtures in shop, industrial, and trade environments. The magnet delivers a maximum pull force of 19 pounds and measures 2.03 inches in diameter with an overall height of 2.3125 inches. The cup body is constructed from mild steel with a chrome-plated finish, and the clamp features vinyl-coated contact surfaces to protect workpiece finishes. This assembly is typically installed by machinists, fabricators, and maintenance technicians who need a repositionable magnetic hold with adjustable clamping.

The MX2000VB01 is suited for light-duty holding and positioning applications on ferrous surfaces in fabrication shops, maintenance bays, and general industrial settings. The clamp opens from 2 inches minimum to 2.5 inches maximum, making it compatible with a range of pipe, tubing, and structural stock diameters within that range. The black vinyl-coated clamp protects the clamped surface and provides a secure, non-slip grip. This part ships as a single unit and is appropriate for both bench and field use.

Key Features

• 19 lb maximum pull force for reliable holding on ferrous surfaces
• Ceramic magnet housed in a mild steel cup for durability and focused magnetic field
• Chrome-plated cup finish resists corrosion and wear
• Vinyl-coated clamp jaws protect workpiece surfaces and improve grip
• Clamp opening adjusts from 2 inches to 2.5 inches for versatile fitment
• Compact profile at 2.3125 inches overall height for use in confined spaces

Compatibility

Designed as a general-purpose ceramic cup magnet with clamp for light-duty holding applications on ferrous materials; compatible with round stock, pipe, or tubing between 2 inches and 2.5 inches in diameter within the clamp range.

Installation Notes

Installation requires no special tools for positioning or repositioning the magnetic clamp assembly. Ensure the mating ferrous surface is clean and free of debris to achieve rated pull force. Do not exceed the 19 lb rated pull force, and avoid use on non-ferrous materials where magnetic adhesion will not occur. This type of assembly is not a substitute for mechanical fastening in load-bearing or overhead applications.
