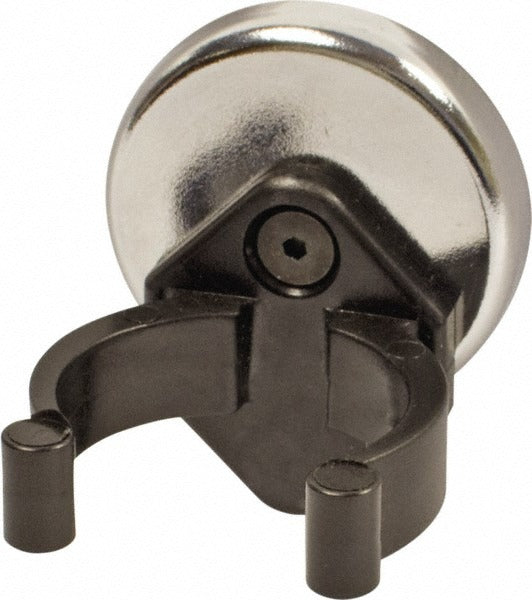

Mag-mate MX1500BP01 Ceramic Cup Magnet 22 Lb Pull

Product Description

The MAG-MATE MX1500BP01 is a ceramic cup magnet designed for holding, clamping, and retrieval applications in trade and industrial settings. It delivers a maximum pull force of 22 pounds and an average pull force of 11 pounds from a compact 1.41-inch diameter cup body. The cup is constructed from mild steel with a chrome-plated finish, while the clamp is plastic-coated in black. The ceramic magnet inside has an inner bore diameter of 0.375 inches. This type of magnet is commonly installed or positioned by electricians, plumbers, pipefitters, and general maintenance technicians who need a low-profile, high-retention magnetic hold point.

The MX1500BP01 is suited for use in light-duty clamping and magnetic mounting tasks across residential and commercial jobsites. The integrated clamp accommodates openings from 1.125 inches minimum to 1.375 inches maximum, allowing it to attach to conduit, pipe, shelving, and similar structures within that range. Its overall height is 1.25 inches, keeping the profile minimal in tight spaces. The unit ships individually and is appropriate wherever a compact, surface-mount magnetic clamp is needed.

Key Features

• Maximum pull force of 22 pounds with an average pull force of 11 pounds
• Ceramic magnet material for reliable, stable magnetic performance
• Mild steel cup with chrome-plated finish for corrosion resistance
• Plastic-coated black clamp protects clamped surfaces from scratching
• Clamp opening range of 1.125 inches to 1.375 inches for flexible mounting
• Compact 1.25-inch overall height fits in restricted mounting locations

Compatibility

Designed as an OEM-style replacement or direct-install ceramic cup magnet for light-duty clamping and magnetic mounting applications where a 1.41-inch diameter cup and clamp opening of up to 1.375 inches is required.

Installation Notes

Installation requires no special tools. Confirm the mounting surface or clamped structure falls within the 1.125-inch to 1.375-inch clamp opening range before securing. Do not exceed the rated maximum pull force of 22 pounds to avoid demagnetization or mechanical failure. Clean the contact surface before seating the magnet cup to ensure full pull force is achieved.
