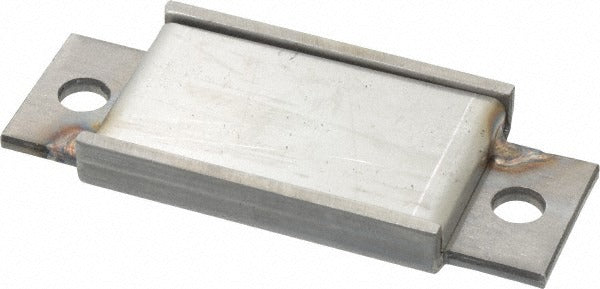

Mag-mate LP2100 Horseshoe Ceramic Fixture Magnet 12.5 Lb

Product Description

The MAG-MATE LP2100 is a ceramic end mount horseshoe fixture magnet designed for secure, permanent, or semi-permanent mounting applications in industrial and trade environments. Built with a stainless steel housing, this magnet delivers a maximum pull force of 12.5 pounds and an average pull force of 12 pounds. Measuring 3.25 inches long by 1.375 inches wide by 0.375 inches thick, it fits in tight mounting spaces while maintaining reliable holding strength. The stainless steel housing protects the ceramic magnet element and is suited for environments where corrosion resistance matters. Electricians, fabricators, and maintenance technicians commonly install this type of fixture magnet in sensor mounting, jig fixturing, and equipment retention setups.

This magnet is intended for end mount installations where the horseshoe orientation provides concentrated pull force at the mounting face. The 1/4-20 threaded mounting hole and 2.63-inch center-to-center hole spacing allow straightforward bolted attachment to panels, frames, or fixtures. The 300 degrees F maximum operating temperature rating makes it suitable for light industrial settings where ambient heat may be a factor. It ships in single-unit packaging with a minimum order quantity of one, making it practical for both single-unit replacement and bulk procurement.

Key Features

• Maximum pull force of 12.5 pounds with an average pull force of 12 pounds
• End mount horseshoe configuration for concentrated, directional holding strength
• Stainless steel housing for corrosion resistance in demanding environments
• Ceramic magnet material provides stable magnetic properties across a wide temperature range
• Rated to 300 degrees F maximum operating temperature
• 1/4-20 threaded mounting hole with 2.63-inch center-to-center hole spacing for standard bolt-down installation

Compatibility

Designed as an OEM-style end mount horseshoe fixture magnet for industrial mounting, sensor retention, and equipment fixturing applications requiring a 1/4-20 mounting thread and up to 12.5 pounds of pull force.

Installation Notes

Installation is typically performed by maintenance technicians, electricians, or fabricators using standard hand tools. Secure the magnet using the 1/4-20 threaded mounting holes to a clean, flat ferromagnetic or structural surface. Ensure the mounting surface and surrounding components are de-energized or safe for contact with a magnetic field before installation. Avoid exposing the magnet to impact loads or temperatures exceeding its 300 degrees F rated maximum.
