Mag-mate CL1500 Lifting Magnet 1500 Lb Permanent

Product Description

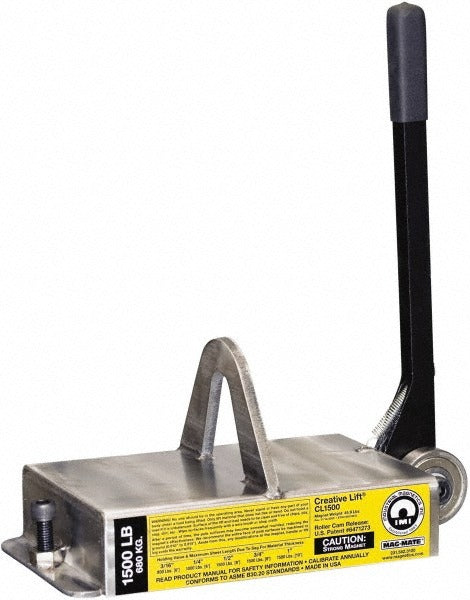

The MAG-MATE CL1500 is a permanent magnetic lifter rated for loads up to 1,500 pounds. It is designed for lifting and positioning flat ferrous stock using a non-marring roller cam activation system that engages and releases the magnetic field without scratching or damaging the workpiece surface. The stainless steel body provides corrosion resistance in demanding shop and yard environments. A spring-return handle aids consistent, repeatable operation. This unit meets ASME B30.20 standards and is built with a 3:1 design factor. It is installed and operated by rigging crews, millwrights, fabricators, and material handling professionals working with flat steel plate and bar stock.

The CL1500 is suited for use in steel fabrication shops, machine shops, structural steel yards, and heavy manufacturing facilities. It handles flat ferrous workpieces and is rated for use up to 300 degrees F. The bail opening accommodates standard rigging hardware for integration into overhead lifting systems. RFID-enabled tagging supports equipment tracking and inspection logging programs used in industrial rigging fleets.

Key Features

• 1,500 lb rated load capacity with a 3:1 design factor
• Permanent magnet - no electrical power source required for operation
• Non-marring roller cam activation protects finished and machined surfaces
• Spring-return handle provides consistent engage and release action
• RFID-enabled for asset tracking and inspection recordkeeping
• Stainless steel body construction for corrosion resistance
• Meets ASME B30.20 below-the-hook lifting device standard

Compatibility

Designed for use with flat ferrous stock. Consult load charts and confirm surface flatness and material permeability before each lift per ASME B30.20 requirements.

Installation Notes

Installation and operation should be performed by qualified rigging personnel familiar with below-the-hook lifting devices and applicable ASME B30.20 requirements. Inspect the magnet, bail, and cam mechanism before each use and remove from service if wear, cracks, or damage are found. Confirm the workpiece is clean, flat, and free of coatings or air gaps that would reduce magnetic holding force. Never exceed the rated working load limit and account for load geometry, surface condition, and temperature when calculating safe working loads.
