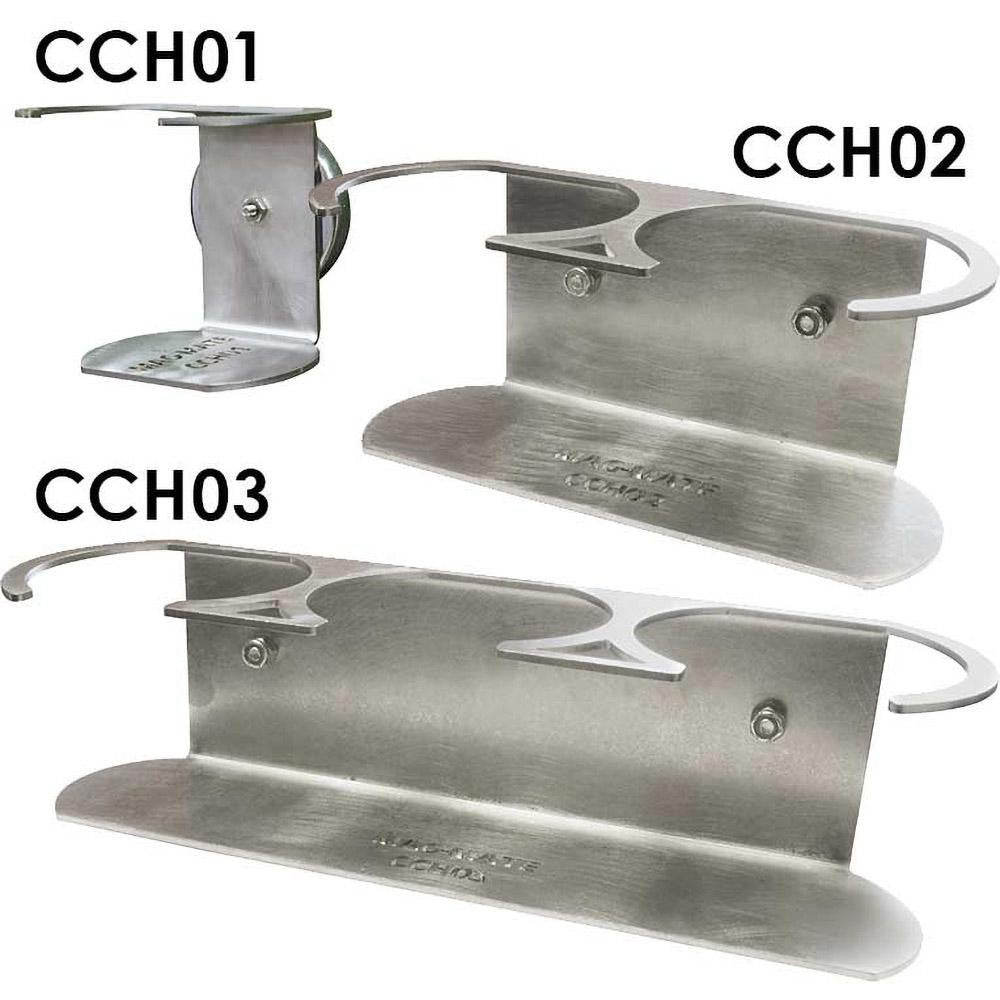

Mag-mate CCH01 Ceramic Cup Magnet 82 Lb Pull Force

Product Description

The MAG-MATE CCH01 is a ceramic cup magnet designed for holding, lifting, and clamping ferrous workpieces in industrial and trade applications. The unit delivers a maximum pull force of 82 pounds and an average pull force of 41 pounds, making it well suited for fixture work, welding setups, and part positioning. The cup stands 0.375 inches tall and measures 2.625 inches in diameter. The mild steel cup and chrome-plated finish provide corrosion resistance and a clean appearance. The clamp component is zinc plated and opens to 3.25 inches. This magnet is installed by machinists, fabricators, and general maintenance technicians.

The CCH01 is used in light industrial, fabrication, and maintenance environments where a reliable magnetic hold on steel or iron surfaces is needed. The 3.25-inch clamp opening accommodates a range of workpiece thicknesses. The chrome-plated finish makes it appropriate for clean-room-adjacent or presentable-shop applications. It is equally at home on a welding table, assembly fixture, or workholding jig. The compact overall height keeps the clamp profile low, which helps in confined work areas.

Key Features

• 82 lb maximum pull force with 41 lb average pull force for reliable ferrous-material holding
• Ceramic magnet material provides strong, stable magnetism without requiring power
• Mild steel cup construction concentrates magnetic flux for improved holding efficiency
• Chrome-plated finish on cup resists corrosion and surface wear
• Zinc-plated clamp with 3.25-inch clamp opening fits a range of workpiece sizes
• Low-profile cup height of 0.375 inches keeps the assembly compact

Compatibility

Designed as a general-purpose ceramic cup magnet for use in ferrous-material holding, clamping, and fixture applications across industrial and maintenance settings.

Installation Notes

Installation and mounting of cup magnets typically requires no specialized tools. Ensure the mounting surface is clean and free of debris before applying the magnet to achieve rated pull force. Keep fingers and loose metal objects clear of the magnet face during placement. Do not attempt to modify the cup or clamp hardware, as doing so may reduce rated holding force.
