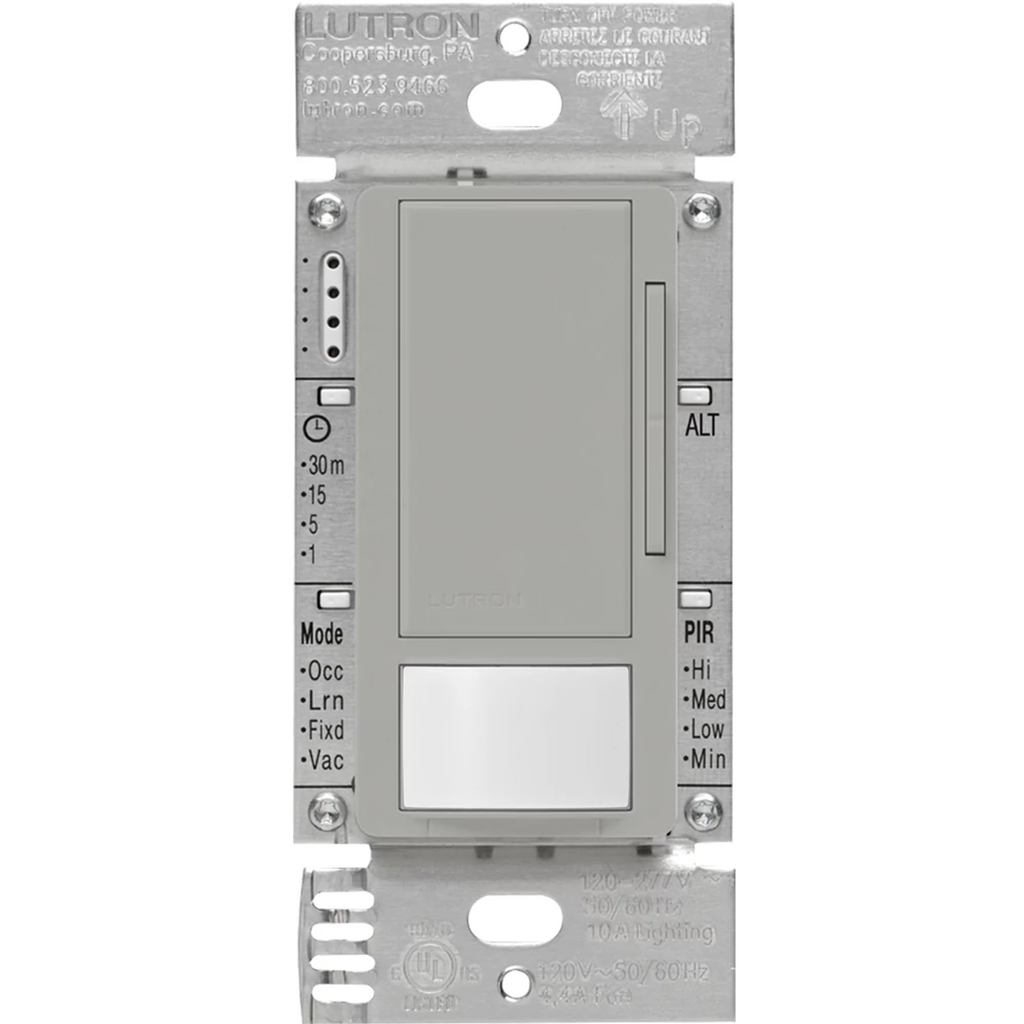

Maestro MS-Z101-V-GR 0-10V Dimmer Senso

Product Description

The Lutron Maestro MS-Z101-V-GR is a 0-10V motion sensor dimmer switch that integrates advanced motion sensing technology. This product automatically controls lighting by gradually turning lights off when the space is unoccupied. It is compatible with drivers providing a maximum current of eight amps for LED switching and a fifty milliamps maximum sink current.

• Includes a 0-10V motion sensor for automatic dimming
• Works in single pole, 3-way configurations with existing switches
• Configurable timeout settings from one to thirty minutes for energy efficiency

Product Highlights

Employs passive infrared technology to detect motion with a wide field of view while allowing for customization of dimming and motion detection settings.

Product Information

Standard Information

• Brand: Maestro
• Manufacturer: Lutron

Technical Specifications

• Voltage: 120 to 277 Volt
• Amperage: 8 Amp
• Color: Gray
• Type: 0-10V Dimmer/Vacancy Sensor
• Operating Temperature: 32 to 104 degrees Fahrenheit
• Sensing Range: 900 square feet major motion
• Standard: UL, Title 20/24 Certified
• Applications: Lighting
