Macon Balancing MB-STVG-3 3 STVG Grooved End Balancing Valve

Product Description

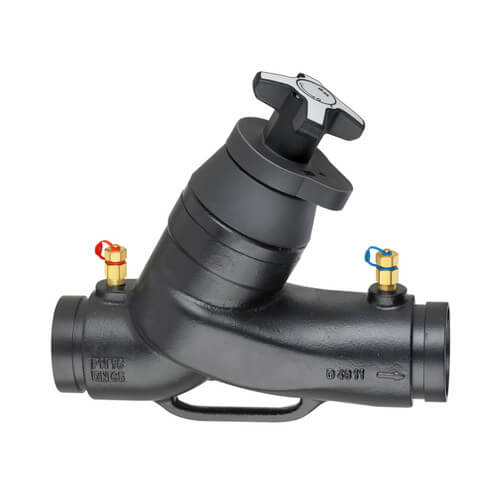

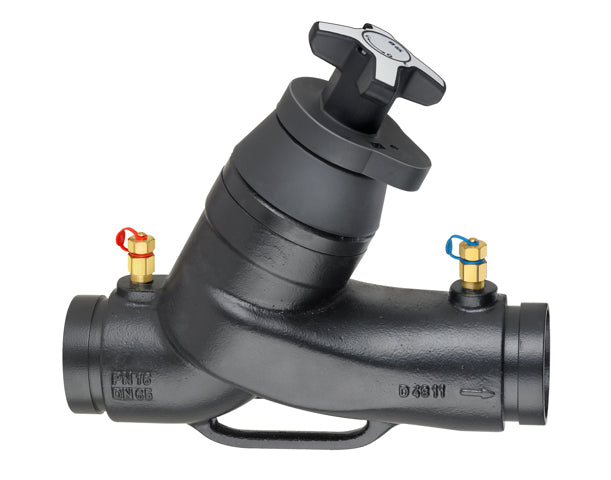

The Macon Balancing MB-STVG-3 is a three-inch grooved end balancing valve designed for effective flow regulation in heating systems. Its distinctive features enhance flow measurement and balancing.

• Positive shut-off for leak prevention.
• Y-pattern design with multi-turn handwheel.
• Built-in memory stop for accurate adjustments.

Product Highlights

This balancing valve is ideal for use in heating applications that require precise flow control. It offers reliable performance with a focus on accuracy and ease of installation.

Product Information

Standard Information

• Brand: Macon Balancing
• MPN: MB-STVG-3

Technical Specifications

• Pressure Ratings: 235 PSI (16 Bar)
• Operating Temperature: -14°F to 250°F (-10°C to 120°C)
• Connections: #300 Grooved
• Body Material: Ductile Iron
• Stem Material: Stainless Steel (AISI 420)
• Seat Seal Material: EPDM Perox
• Handwheel Size: 1.5 to 6 inches, Polymide Plastic with 30% Glass Fiber; 8 to 12 inches, Ductile Iron
