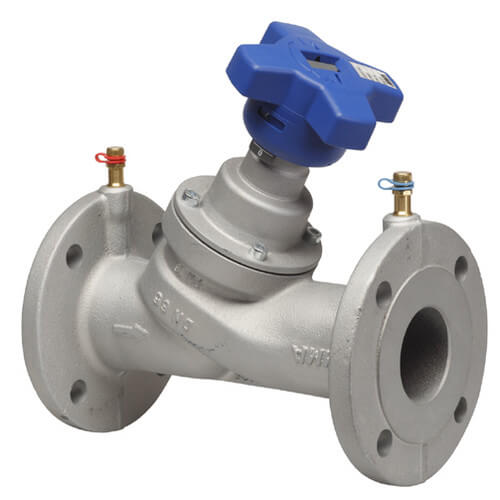

Macon Balancing MB-STVA-4 4 Flanged STVA Balancing Valve

Product Description

The Macon Balancing MB-STVA-4 is a 4-inch flanged balancing valve designed to efficiently measure and balance heating and cooling system flow rates. This valve offers a dependable and cost-effective solution to enhance comfort while minimizing energy consumption and maintenance needs.

• Features flow measurement, flow balancing, and positive shutoff.
• Y Pattern, globe style design enhances accuracy.
• Multi-turn, 360-degree handwheel with vernier scale and digital readout.

Product Highlights

The Macon Balancing valve is essential for HVAC applications requiring precise flow control.

Product Information

Standard Information

• Brand: Macon Balancing
• Category: Heating Supplies & Parts > Heating Specialties > Circuit Setters > Balancing Valves > Macon Balancing Valves

Technical Specifications

• Size: 4 inches
• Material: Cast Iron
• Weight: 57.3 pounds
• Connection Type: Flanged x Flanged
• Max Operating Temperature: 250°F
• Max Pressure (PSI): 250
• Min Operating Temperature: -14°F
• Shipping Dimensions: 13 x 13.78 x 10.2 inches
