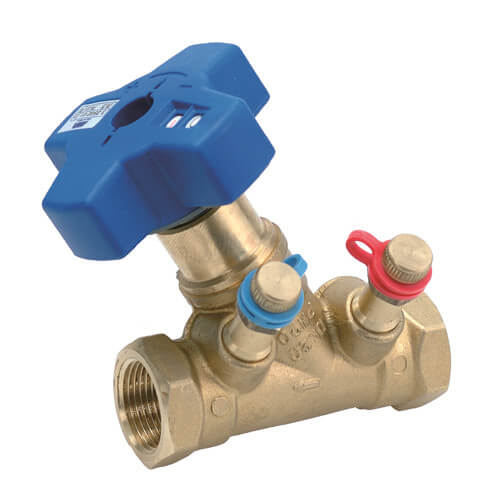

Macon Balancing MB-STV-NPT-1 1 NPT STV Balancing Valve

Product Description

Macon Balancing MB-STV-NPT-1 is a 1 NPT STV Balancing Valve designed to provide an effective solution for measuring and balancing flow rates in heating and cooling systems. This valve enhances system efficiency, reduces maintenance, increases comfort, and lowers energy consumption.

• Y-pattern, globe style design for improved accuracy
• Multi-turn, 360-degree handwheel with vernier scale and digital readout
• Self-sealing pressure and temperature ports

Product Highlights

This product functions as a flow measurement, flow balancing, and positive shutoff valve. It includes features like a built-in, hidden memory stop and optional drain valves.

Product Information

Standard Information

• Material: Brass
• Connection Type: Threaded

Technical Specifications

• Max Operating Temperature: 250 degrees Fahrenheit
• Max Pressure (PSI): 300
• Min Operating Temperature: -22 degrees Fahrenheit
• Weight: 1.7 pounds
• Shipping Dimensions: 6.7 inches (depth) x 5 inches (width) x 4.5 inches (height)
